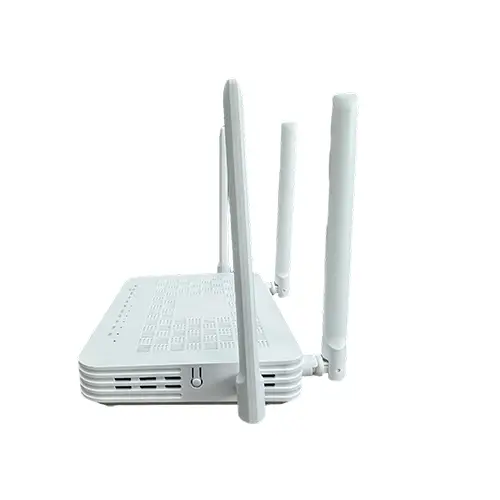

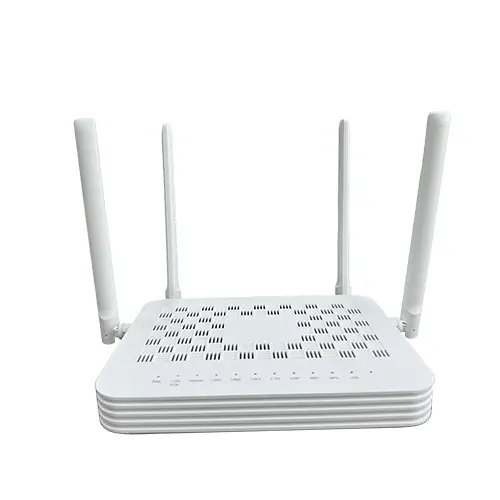

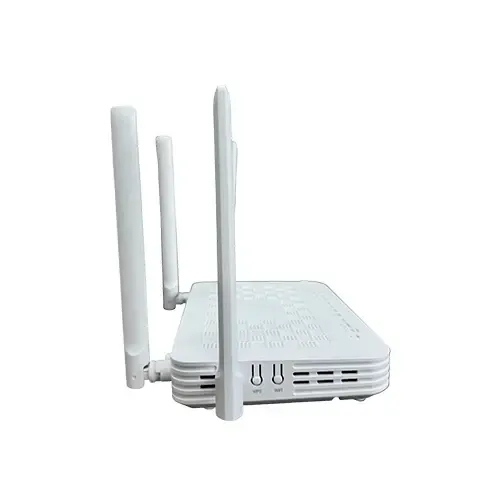

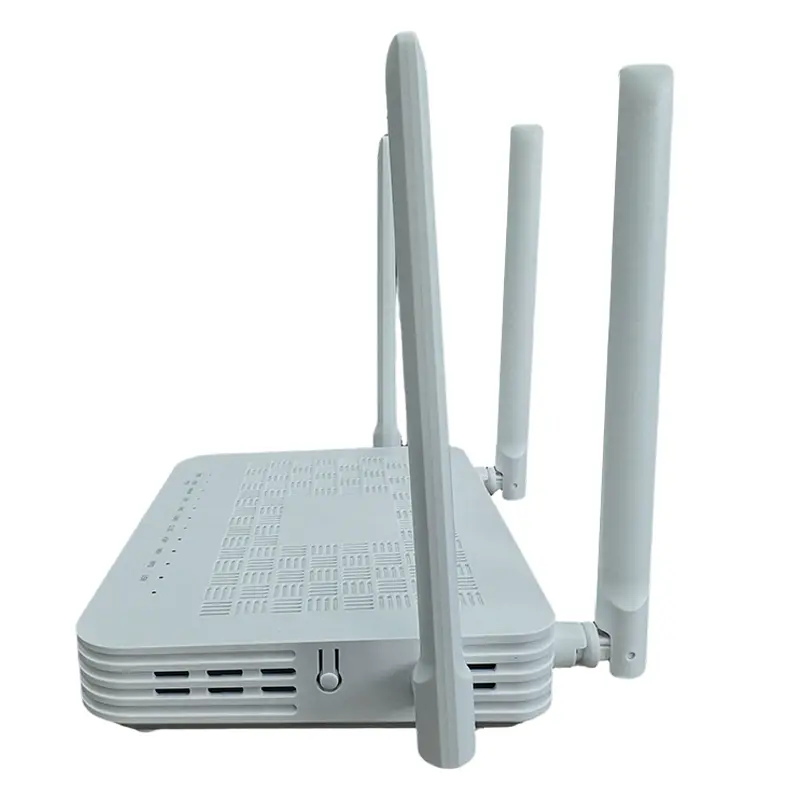

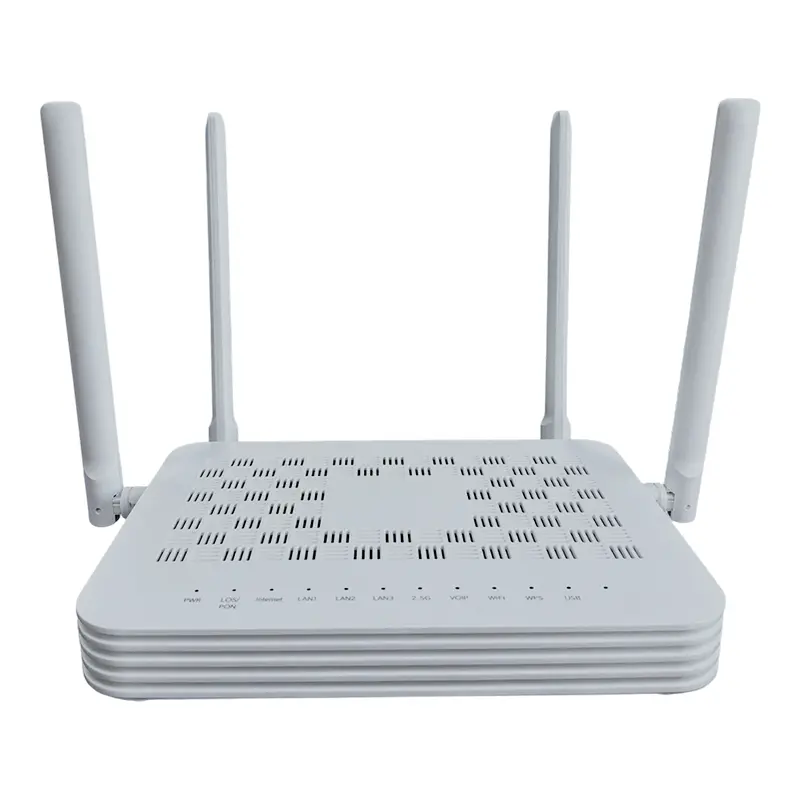

FS3124BE: Symmetric 10Gbps XGSPON with 2.5G/10G LAN
Delivers full 10Gbps upstream and downstream over fiber, with a LAN4 port supporting 2.5GE or optional 10GE for high-speed wired connections.

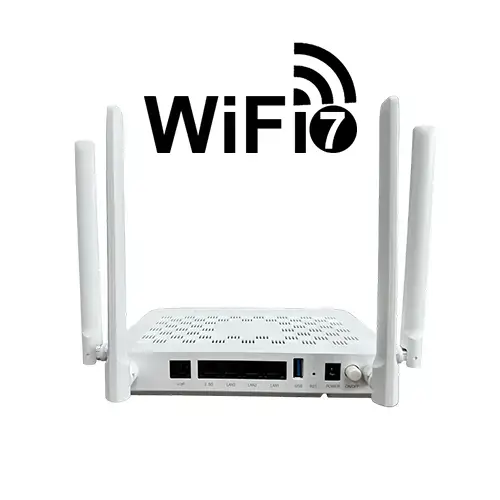

Next-Gen WiFi 7 (BE3600) with MLO Technology
Provides ultra-fast dual-band wireless using 2x2 MIMO and Multi-Link Operation (MLO), secured by the latest WPA3 encryption protocol.
Integrated Voice, Data, and Storage Gateway
Features a carrier-grade VoIP port with G.711/G.729 codecs, three Gigabit Ethernet ports, and a USB 3.0 port for media sharing.
Commercial-Grade Hardware for Reliable Operation
Engineered for stability with a wide -5~45°C operating range, low 24W power consumption, and a Class B+ optical module featuring Dying Gasp alerts.
Carrier-Class Management and Interoperability
Compliant with ITU-T G.987/G.988 standards, supporting OMCI, TR069, Telnet, and SSH for flexible remote management with dual-system backup.
1*2.5GE + 3*GE + 1*POTS + WiFi 7 (BE3600) + USB 3.0 XGSPON ONU
Compliant with ITU-T G.987.3, G.988, G.989 standards, supporting upstream and downstream speeds up to 10Gbps
Integrated with next-generation WiFi 7 (BE3600) , supporting 2x2 MIMO and MLO (Multi-Link Operation) ; 688Mbps on 2.4GHz and 2882Mbps on 5GHz
Downstream ports include 1 x 2.5GE (10GE optional) and 3 x Gigabit Ethernet ports for high-speed wired connections
Comprehensive L3 features: NAT, PPPoE, DHCP, Static IP, Port Forwarding, ALG, UPnP, DDNS, and IPv4/IPv6 dual stack

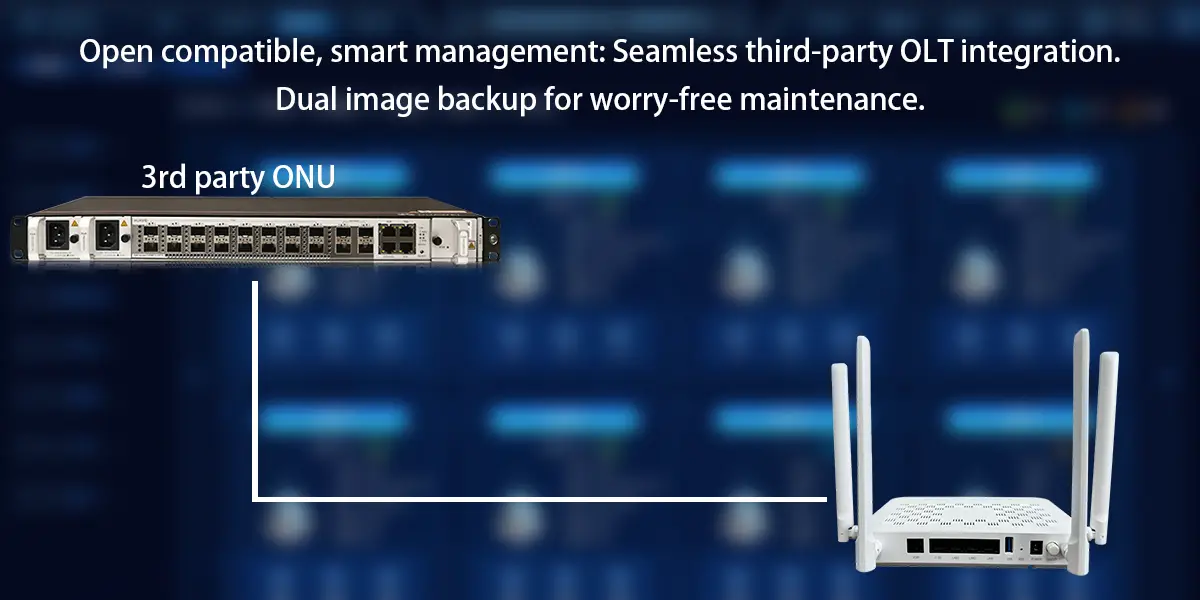

Rich management capabilities: Supports OMCI / Web UI / Telnet / SSH / TR069, and dual-system software backup and rollback
| Interface Specs | XGSPON: Upstream 10Gbps/Downstream 10Gbps Transmission Distance: 0~20km Receiver Sensitivity: -28dBm TX Optical Power: 4dBm~9dBm |
QoS | Supports 8 queues with Strict Priority, SP/WRR scheduling, Ethernet port rate limitation, and traffic classification based on 802.1p |
| WiFi7 | Protocol: 2.4GHz (802.11b/g/n/ax/be), 5GHz (802.11a/n/ac/ax/be) Speed: 2.4GHz 688Mbps, 5GHz 2882Mbps Antenna: 5dBi high-gain antenna, 2.4G & 5G dual-band MIMO Security: Supports WPA2-PSK/WPA3-SAE |
VOIP | Supports G.711a/u, G.729a/b, G.722 codecs; supports Call Waiting, Call Forwarding, Three-way Calls; supports T.30/T.38 fax mode |
| L3 Feature | Supports NAT, PPPoE/DHCP/Static IP, Port Forwarding ALG, UPnP, DDNS, IPv4/IPv6 dual stack | Management | Supports OMCI/Web UI/CLI, Telnet/SSH, TR069, dual-system backup and rollback |

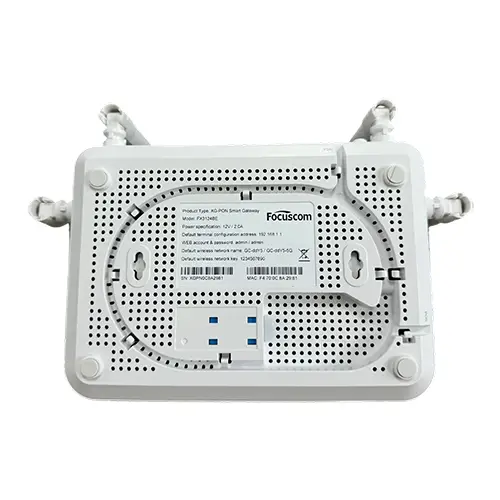

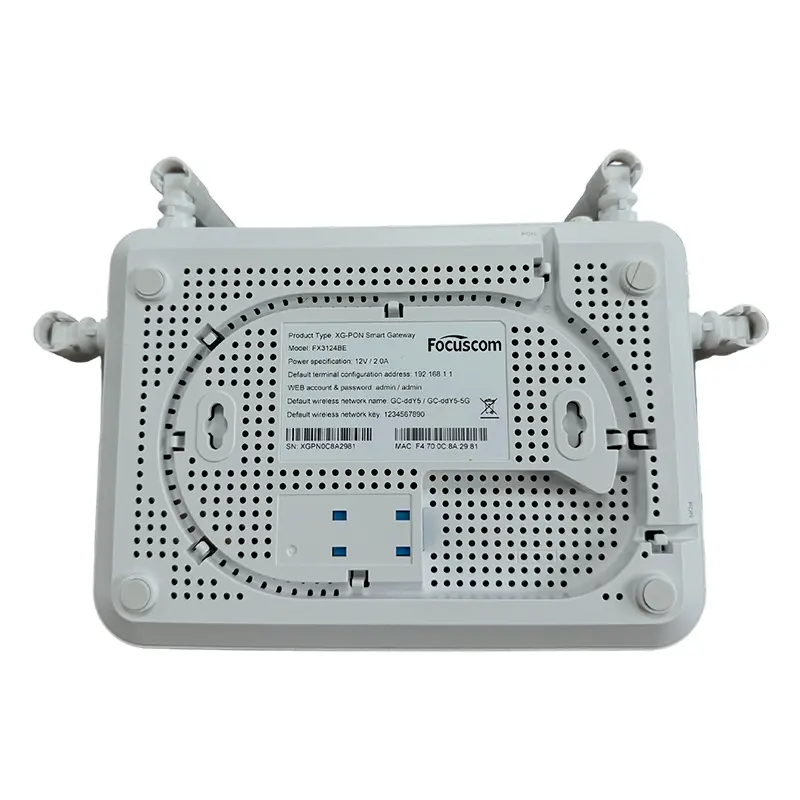

| Physical Specs | Dimensions: 169.3mm×112.8mm×43mm (L×W×H) Weight: 0.35kg Power Supply: 12V/2A Power Consumption: ≤24W |
Environment | Operating Temperature: -5℃～45℃; Operating Humidity: 5%～95% (non-condensing) Storage Temperature: -20℃～70℃ |
| Model | Description | ||
| FS3124BE | 1*2.5GE (10G optional) + 3GE + 1VOIP + 1USB + WiFi 7 (BE3600) + XGSPON ONU. Accessories: Power Adapter, RJ45 Ethernet Cable, RJ11 Telephone Cable |
||
| CN, EU, USA Plug for optional | |||
