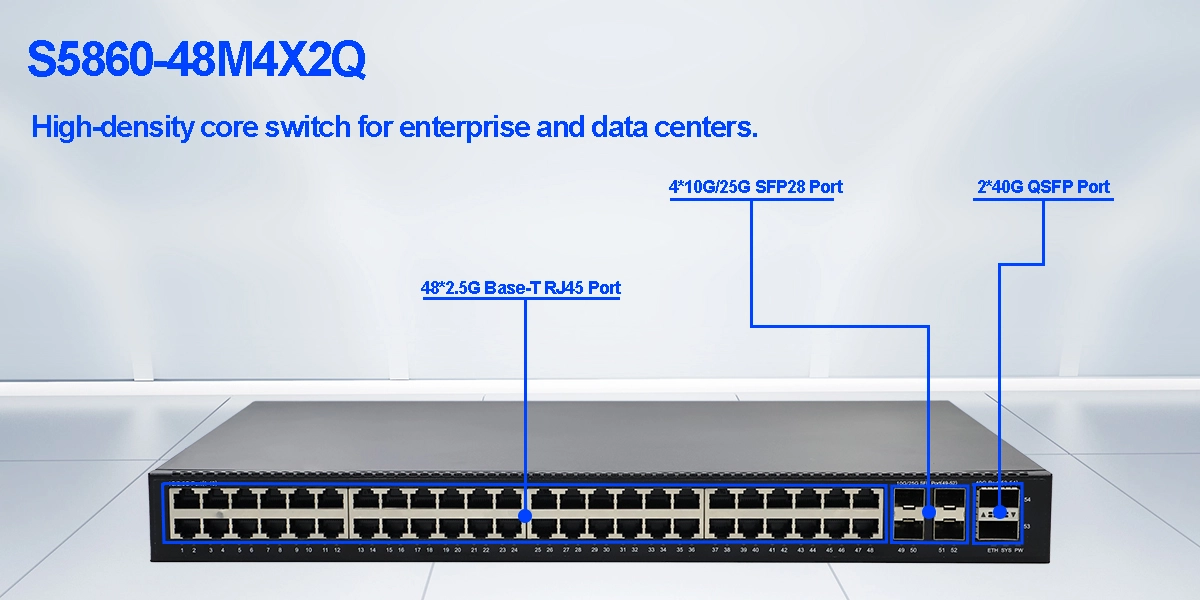

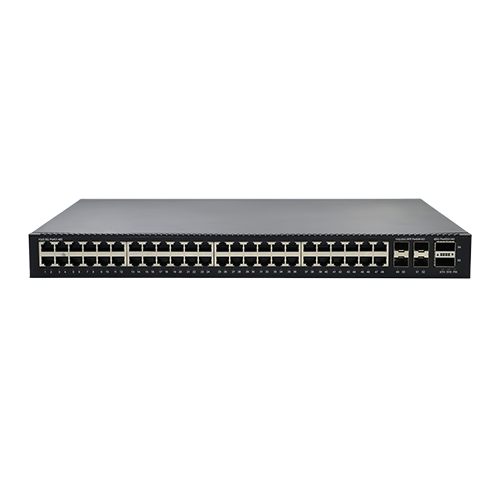

S5860-48M4X2Q: High-Density Multi-Gigabit and 40G Uplinks
It combines 48 Multi-Gigabit RJ45 ports with high-speed 25G and 40G uplinks. This offers exceptional flexibility for connecting a large number of devices while providing massive backbone bandwidth for demanding applications.
High-Performance Core Routing Switch
With a 600Gbps capacity and 446Mpps forwarding rate, it handles heavy network traffic effortlessly. This robust performance makes it perfectly suited for the core layer of enterprise and data center networks.
Comprehensive Security and Traffic Control
It features robust ACLs, QoS policies, and RADIUS/TACACS+ authentication. This allows for precise control over user access, network traffic prioritization, and protection against security threats.
Advanced Networking Solutions Provider
Focuscom combines 40+ software copyrights and 10+ patents with expert R&D to deliver cutting-edge network switches, supported by exceptional customer service.
48* 2.5G RJ45 port, 4*10G/25G SFP+ port, 2*40G QSFP port
Support IPv4/IPv6 dual protocol stack platform, Support multiple link redundancy and network redundancy protocols such as STP/RSTP/MSTP/ERPS/LACP
Support ACL, QoS, Multicast and so on
Support static route, Support DYNAMIC ROUTE SUCH AS RIP, OSPF, BGP, IS-IS

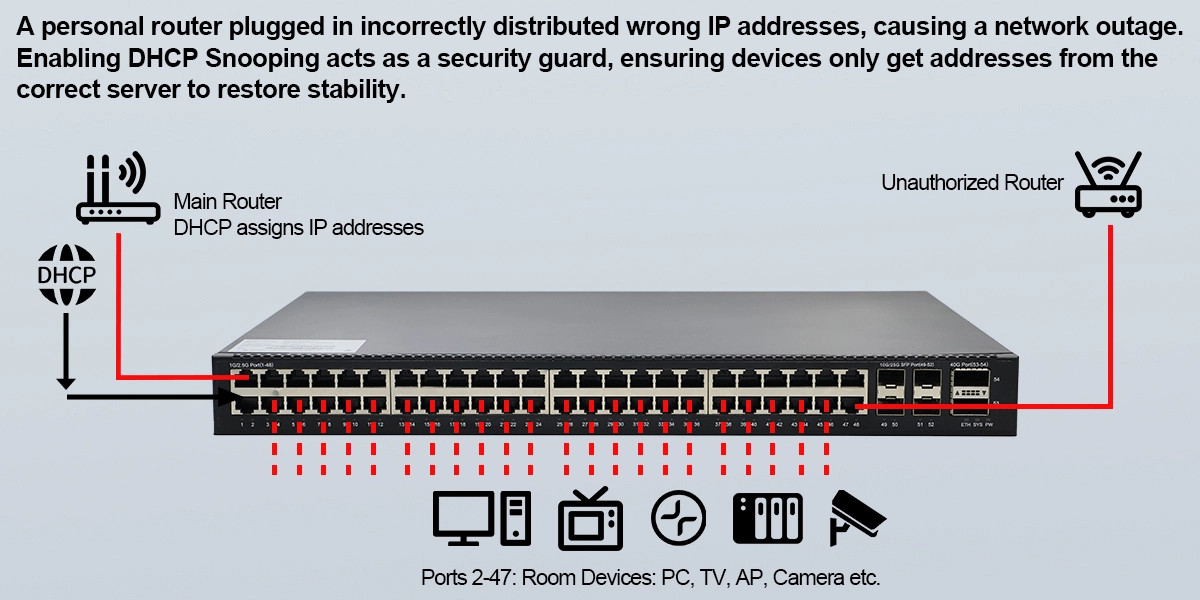

Support DHCP Server and DHCP Relay、L2-Tunnel
Support Ethernet OAM protocol such as CFM、EFM

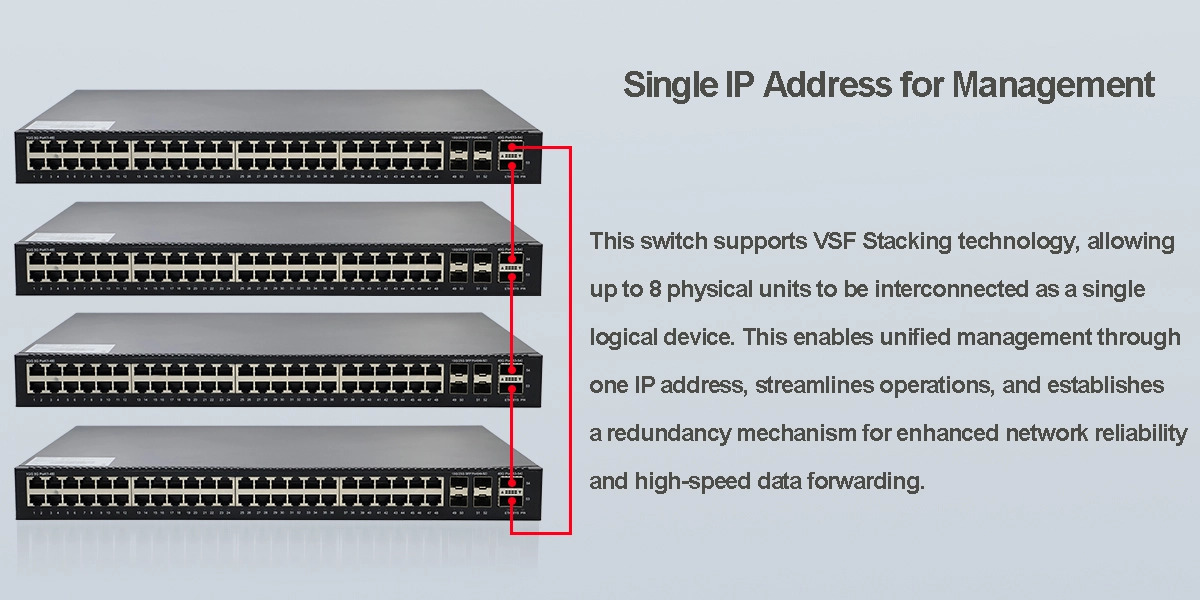

Support VSF (Virtual Switch Framework) stacking, allowing multiple devices to be virtualized into a single logical entity
Support CLI、Telnet and SSHv2, WEB management
Support SNMP V1/V2/V3, Support remote upgrade or equipment through FTP and TFTP
| Interface | 48*10/100/1000M/2.5G Base-T RJ45 Port; 4*10G/25G SFP+ Port; 2*40G QSFP Port |
Configuration Management | Inband management interface and configuration Outband management interface and configuration Privileged user priority and privileged commands Network management based on SNMPv1/v2c/v3 Public and private MIB Public and private Trap Configuration and management based on WEB Restore factory default configuration |
| Environment Temperature | Working Temperature: -15°C～55°C Storage Temperature: -40°C～70°C Relative Humidity: 10%～90%, non-condensing |
Power Supply | AC: 100～240V 47/63Hz, dual fixed AC power supply optional |
| Dimension & Weight | 440*330*44mm (L*W*H） 9.5kg |
Power Consumption | ≤125W |
| Model | Description |
| S5860-48M4X2Q | 48*10/100/1000M/2.5G Base-T RJ45 Port; 4*10G/25G SFP+ Port; 2*40G QSFP Port |
| Fixed internal power supply, Single, 100-240 VAC 47-63Hz | |
| CN / EU / USA Plug Optional |
