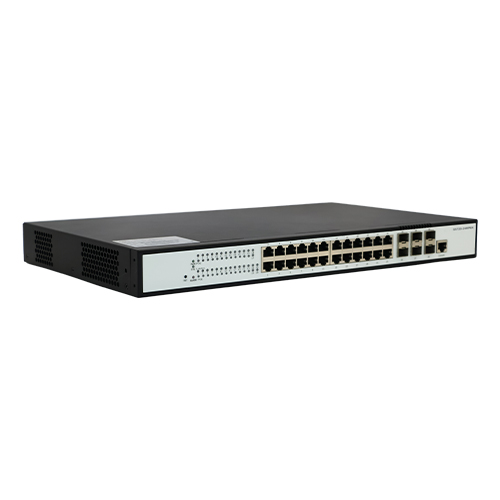

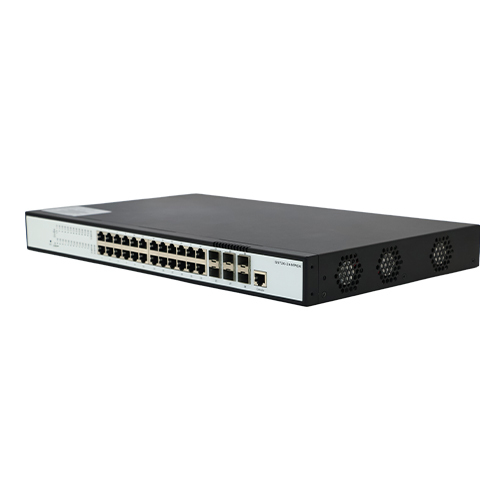

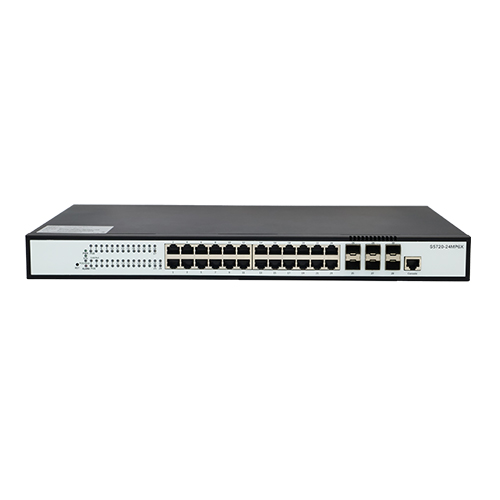

S5720-24MP6X: All-in-One PoE and 2.5G Managed L3 Access Layer Ethernet Switch
Combines 24 PoE+ enabled 2.5G Ethernet ports with six 10G uplinks in a single unit. This simplifies deployments by delivering both power and high-speed data over a single cable, reducing clutter and cost.

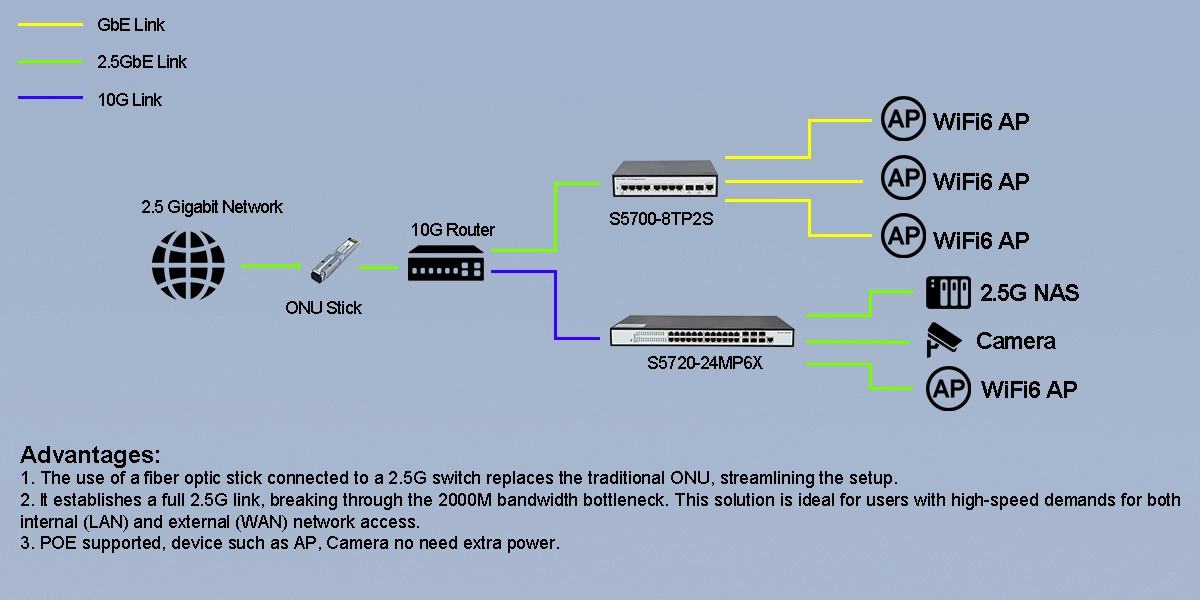

Versatile 2.5G PoE Switch for Modern Networks

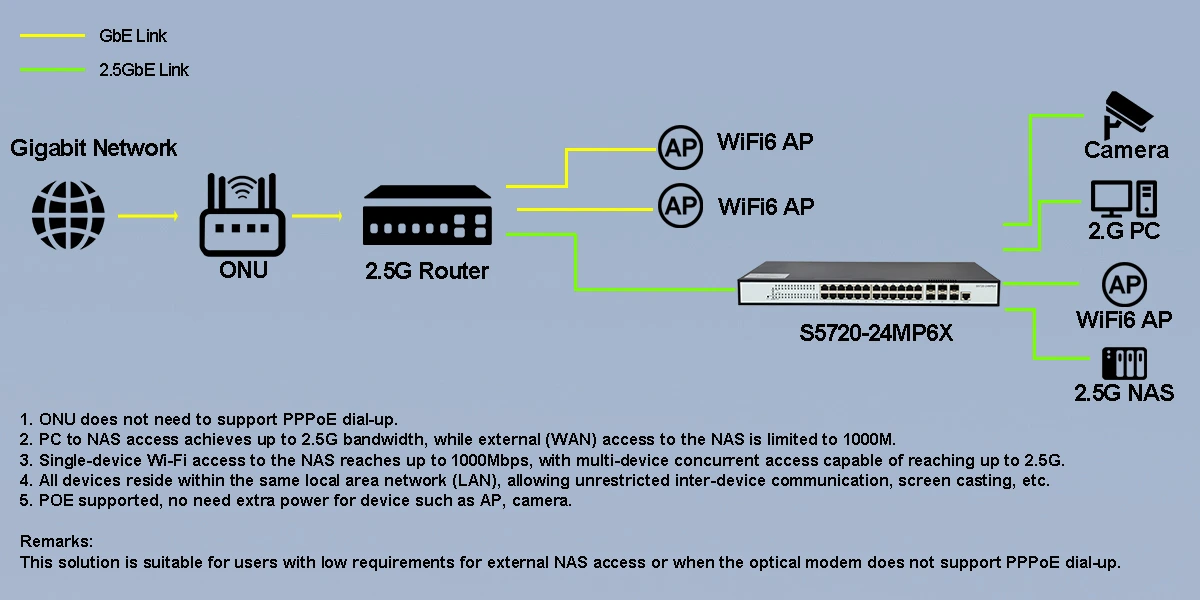

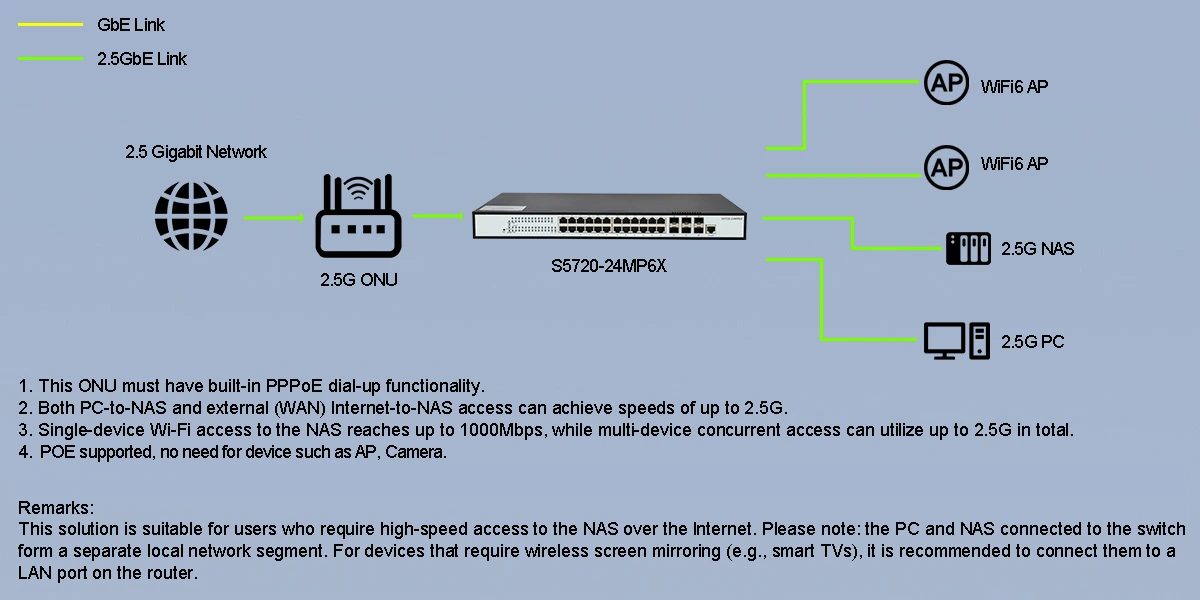

Engineered for hotels, enterprises, and high-speed data transfer, it simplifies infrastructure by delivering both power and multi-gigabit connectivity from a single device.
Engineering Excellence with Full Support
Backed by 40+ software copyrights, 10+ patents, and a professional engineering team, we provide reliable technology solutions with comprehensive after-sales support.

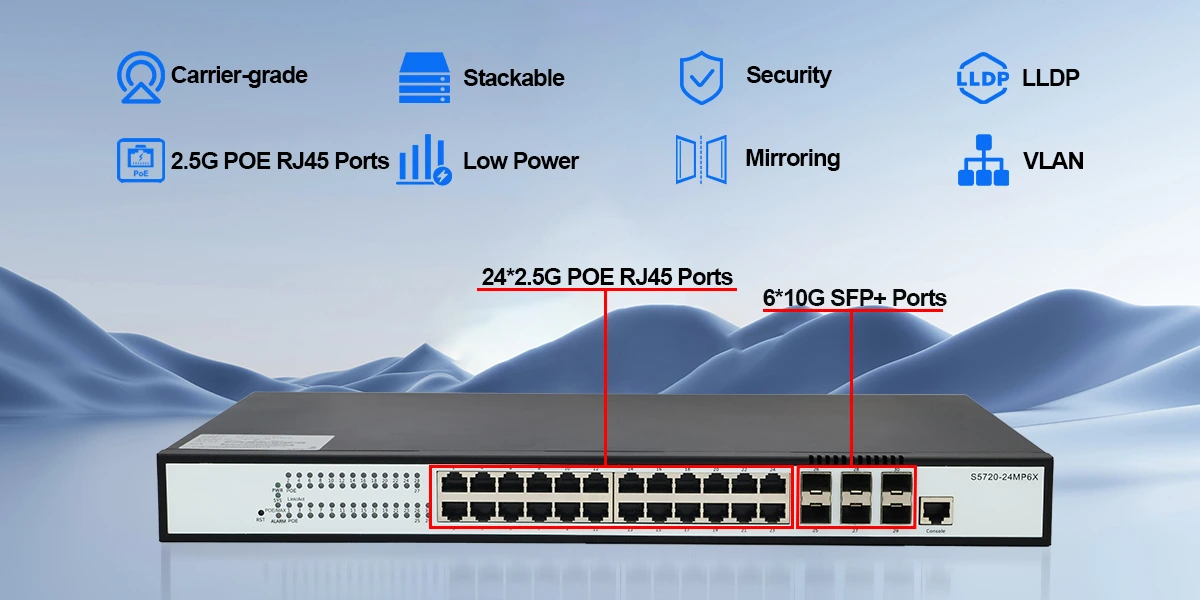

24*2.5G POE Base-T RJ45 port, 6*10G SFP+ port
Support IPv4/IPv6 dual protocol stack platform, Support multiple link redundancy and network redundancy protocols such as STP/RSTP/MSTP/ERPS/LACP, Support PTP
Support ACL security filtering mechanism, ARP/DHCP attack automatic protection and user blocking functions
Support DHCP-snooping/IP-source-Guard/802.1Xand other security features
Support DDOS and virus attack protection, Support link protection functions such as BFD, FlexLink, LACP and ERRP
Support remote loop detection function, Support CFM、EFM
Support remote user authentication based on Tacacs+, Radius, and Local user authentication
Support ACL, QoS, multicast, etc.
Support DHCP Server and DHCP Relay, L2-Tunnel, Support CFM/EFM
Support static route and dynamic route such as RIP, OSPF, BGP, ISIS, Support RIPng/OSPFv3
Support WEB-based configure operation management, Support SNMP V1/V2/V3
Support remote upgrade or equipment through FTP and TFTP
| Interface | 24*10/100/1000M/2.5G POE Base-T RJ45 Port 6*1000Base-X SFP/10GE SFP+ Port |
System Management | Support FTP, TFTP file upload and download Support SNTP; Support system work log Support LLDP neighbor device discovery protocol Support 802.3ah Etherner OAM Support RFC1213 SNMP system management Support Ping and Traceroute Support WEB-based configure operation management Support the whole machine power failure alarm function |
| Environment Temperature | Working Temperature: -15°C～55°C Storage Temperature: -40°C～70°C Relative Humidity: 10%～90%, non-condensing |

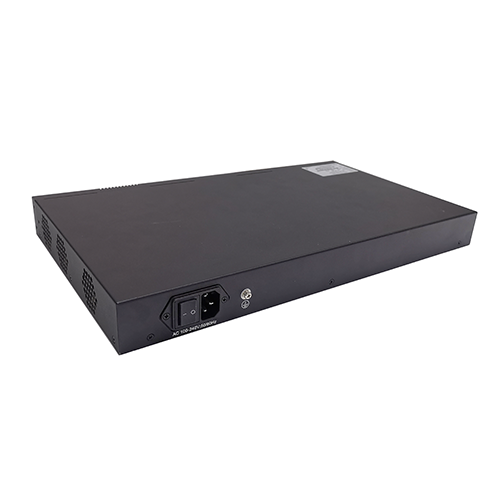

Power Supply | AC: 100～240V 47/63Hz DC: 40V~60V |
| Dimension & Weight | 440*260*44mm (L*W*H） 4.2kg |
Power Consumption | Full-load Power ≤450W No-load Power ≤30W |
| Model | Description |
| S5720-24MP6X | 24*10/100/1000M/2.5G POE Base-T RJ45 Port; 6*1000Base-X SFP/10GE SFP+ Port |
| Fixed internal power supply, Single, 100-240 VAC 47-63Hz | |
| CN / EU / USA Plug Optional |
