This switch offers 24x 2.5GbE ports, providing ample high-speed connectivity for modern workstations, NAS devices, and servers, eliminating network bottlenecks.
Carrier-Grade Network Reliability for Multiple Application
With support for STP/RSTP/MSTP and LACP, this switch ensures network redundancy and high availability, preventing loops and enabling link failover.
Flexible Network Management Options
It supports multiple management methods including CLI, WEB GUI, and SNMP, offering flexibility for network administrators of all skill levels.
Compact and Energy-Efficient Design
The switch delivers high port density and performance in a compact 1U form factor with low power consumption, saving both rack space and operational costs.

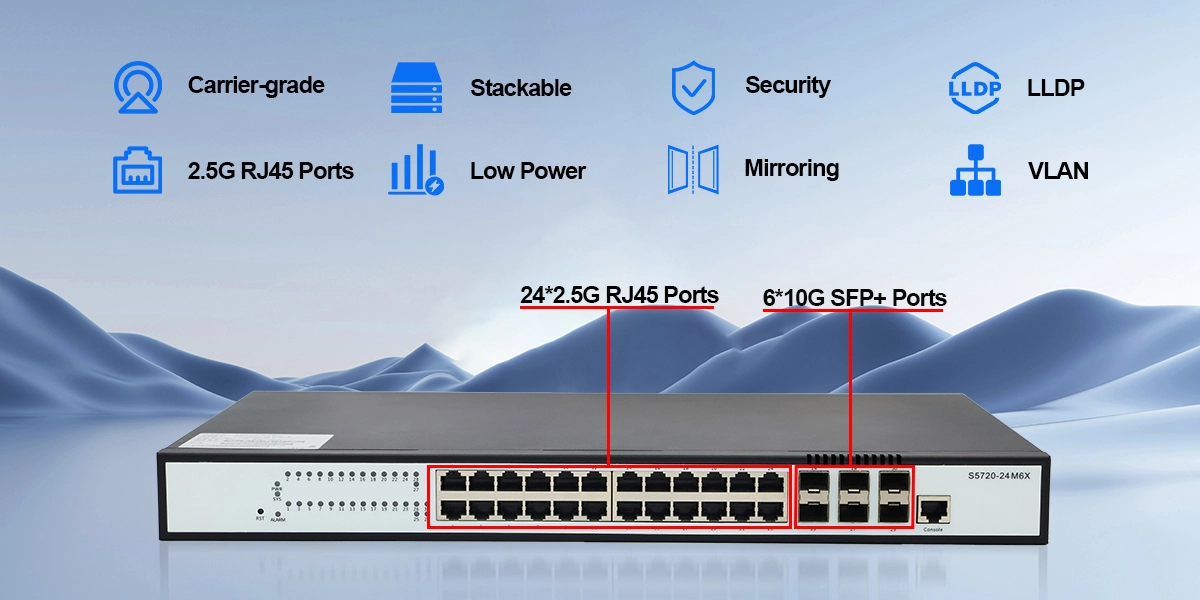

24*2.5G Base-T RJ45 port, 6*10G SFP+ port
Support IPv4/IPv6 dual protocol stack platform, Support multiple link redundancy and network redundancy protocols such as STP/RSTP/MSTP/ERPS/LACP, Support PTP
Support ACL security filtering mechanism, ARP/DHCP attack automatic protection and user blocking functions
Support DHCP-snooping/IP-source-Guard/802.1Xand other security features
Support DDOS and virus attack protection, Support link protection functions such as BFD, FlexLink, LACP and ERRP
Support remote loop detection function, Support CFM、EFM
Support remote user authentication based on Tacacs+, Radius, and Local user authentication
Support ACL, QoS, multicast, etc.
Support DHCP Server and DHCP Relay, L2-Tunnel, Support CFM/EFM
Support static route and dynamic route such as RIP, OSPF, BGP, ISIS, Support RIPng/OSPFv3
Support WEB-based configure operation management, Support SNMP V1/V2/V3
Support remote upgrade or equipment through FTP and TFTP
| Interface | 24*2.5G Base-T RJ45 Port 6*SFP/10GE SFP+ Port |
System Management | Support FTP, TFTP file upload and download Support SNTP; Support system work log Support LLDP neighbor device discovery protocol Support 802.3ah Etherner OAM Support RFC1213 SNMP system management Support Ping and Traceroute Support WEB-based configure operation management Support the whole machine power failure alarm function |
| Environment Temperature | Working Temperature: -15°C～55°C Storage Temperature: -40°C～70°C Relative Humidity: 10%～90%, non-condensing |

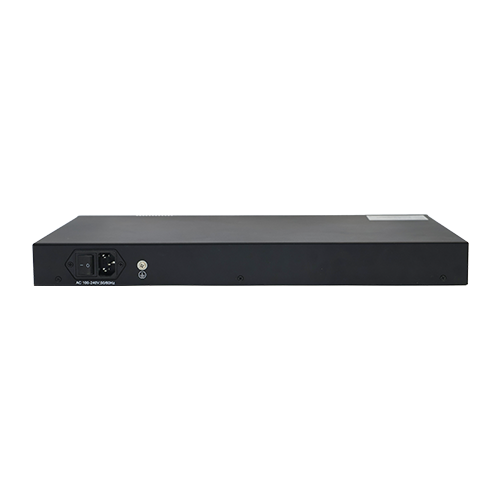

Power Supply | AC: 100～240V 47/63Hz DC: 40V~60V |
| Dimension & Weight | 440*260*44mm (L*W*H） 3.5kg |
Power Consumption | Full-load Power ≤39W No-load Power ≤18W |
| Model | Description |
| S5720-24M6X | 24*2.5G Base-T RJ45 Port; 6*SFP/10GE SFP+ Port |
| Fixed internal power supply, Single, 100-240 VAC 47-63Hz; -40--60 VDC | |
| CN / EU / USA Plug Optional |
