Granular Traffic Control with QoS and Rate Limiting
Gain precise control over your network traffic using advanced Quality of Service (QoS) and Port Rate Limiting. These features allow you to prioritize critical applications, manage bandwidth effectively, and implement storm control, ensuring optimal performance for business-critical operations and a consistent user experience.

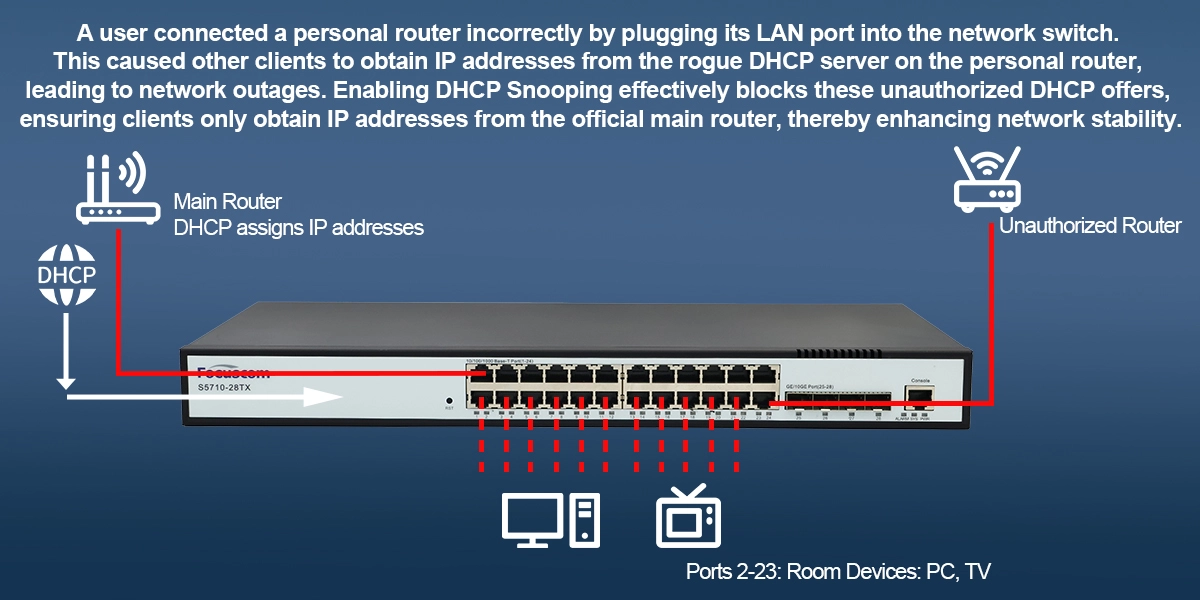

Rogue DHCP Server Mitigation via DHCP Snooping
Protect your network from unauthorized DHCP servers and resulting outages by enabling the powerful DHCP Snooping feature. This security function effectively blocks DHCP offers from rogue devices, like a misconfigured personal router, ensuring clients only obtain legitimate IP addresses from your official main router.

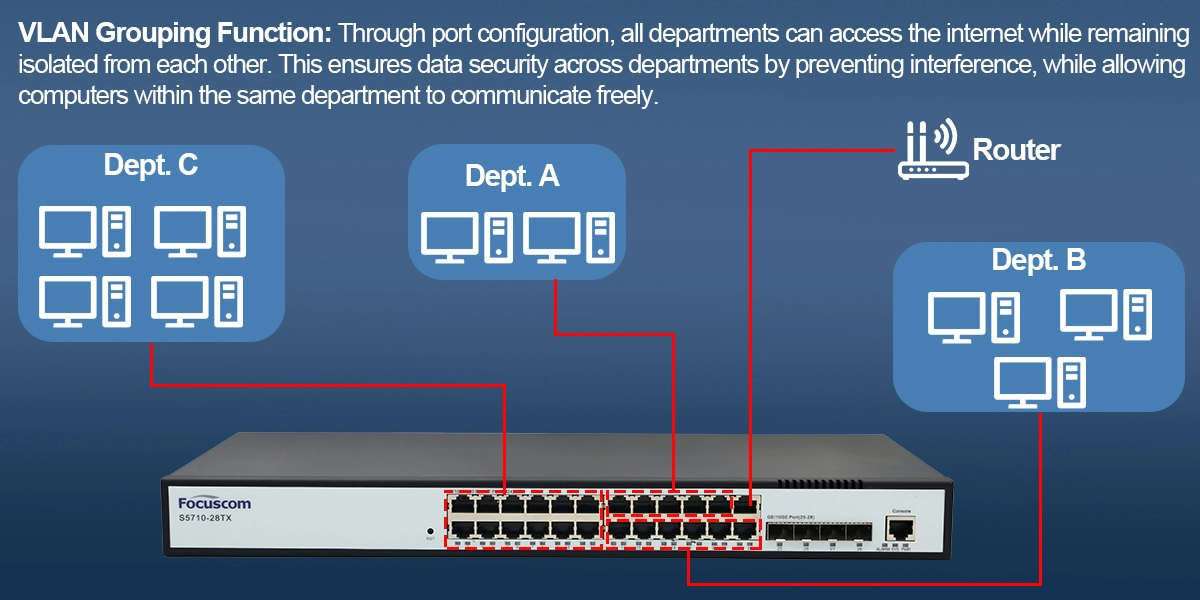

Advanced VLAN Segmentation for Secure Departments
Enhance departmental data security with robust 802.1Q VLAN support on the S5710-28TX. This managed switch allows you to segment your network into secure virtual LANs, ensuring departments remain isolated from each other to prevent data interference while enabling seamless communication within the same group and internet access for all.


24*10/100/1000M Base-T RJ45 port, 4*1GE/10GE SFP+ port
Support IPv4/IPv6 dual protocol stack platform
Support IPv4/IPv6 dual protocol stack platform, Support multiple link redundancy and network redundancy protocols such as STP/RSTP/MSTP/ERPS/LACP
Support ACL security filtering mechanism, Support ARP/DHCP attack automatic protection
Support DHCP-snooping/IP-source-Guard/802.1X and other security features
Support CFM、EFM
Support link protection functions such as BFD, FlexLink, LACP and ERRP
Support ACL, QoS, Multicast, and so on
Support DHCP Server and DHCP Replay, Support Ethernet OAM protocol
Support IPv4/IPv6 static route, Support dynamic route RIP/OSPF/BGP/ISIS
Support VRRP, CLI, Telnet, WEB, SNMP V1/V2/V3
| Interface | 24*10/100/1000M RJ45 RJ45 Port 4 *SFP/10G SFP+ Port |
System Management | Support FTP, TFTP file upload and download Support SNTP; Support system work log Support LLDP neighbor device discovery protocol Support 802.3ah Etherner OAM Support RFC1213 SNMP system management Support Ping and Traceroute Support WEB-based configure operation management; Support the whole machine power failure alarm function |
| Environment Temperature | Working Temperature: -15°C~55°C Storage Temperature: -40°C~70°C Relative Humidity: 10%~90%, non-condensing |

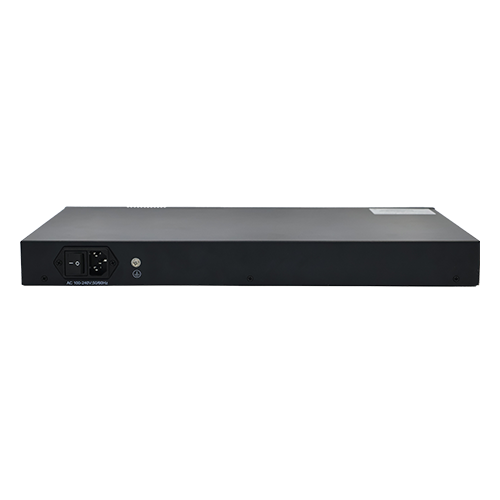

Power Supply | AC: 100~240V 50/60Hz DC: 40V~60V |
| Dimension & Weight | 440*210*44mm (L*W*H) 2.6kg |
Power Consumption | Full-load Power ≤30W No-load Power ≤13W |
| Model | Description |

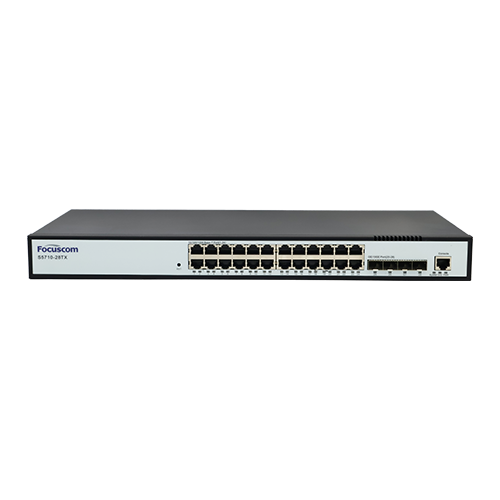

| S5710-28TX | 24* 10/100/1000M Base-T RJ45 RJ45 Port; 4* SFP/10G SFP+ Port |
| Fixed internal power supply, Single, 100-240 VAC 47-63Hz; -40--60 VDC | |
| CN / EU / USA Plug Optional |
