L3 Managed Switch

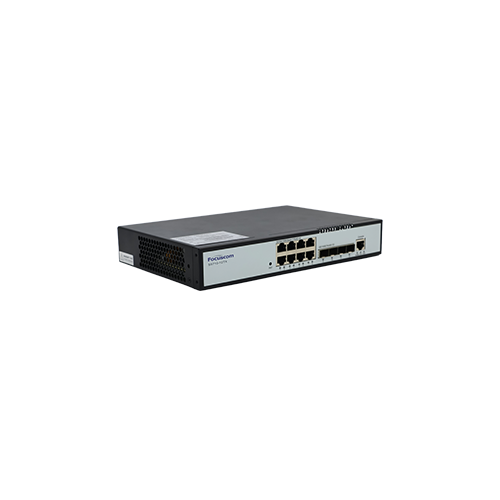

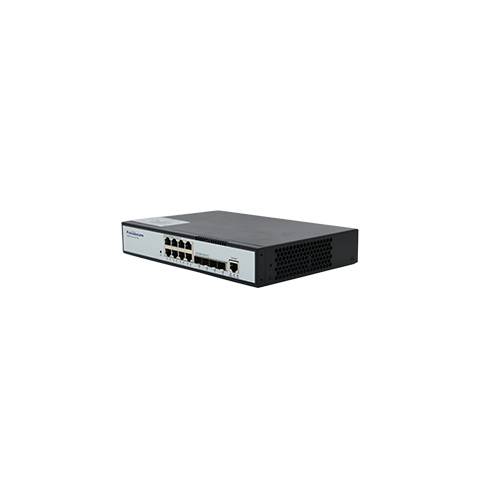

Name: Network Switch Layer3 Managed Switch Gigbit Ethernet Access Layer Switch S5710-12TX
Brand: Focuscom
SKU: 00171
Availability: InStock
Rating: 5 (1 reviews)

Home > Networking Switch > L3 Managed Switch

Description Specification Purchase Info

Description

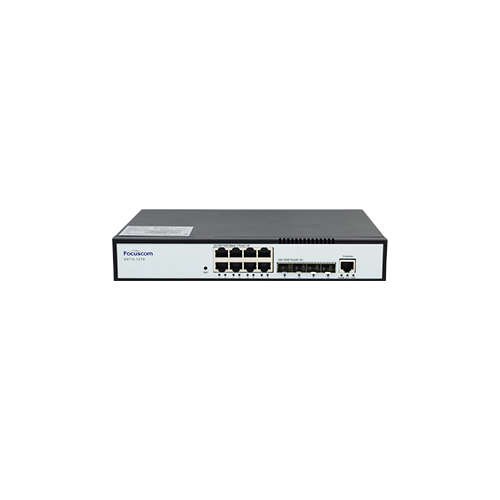

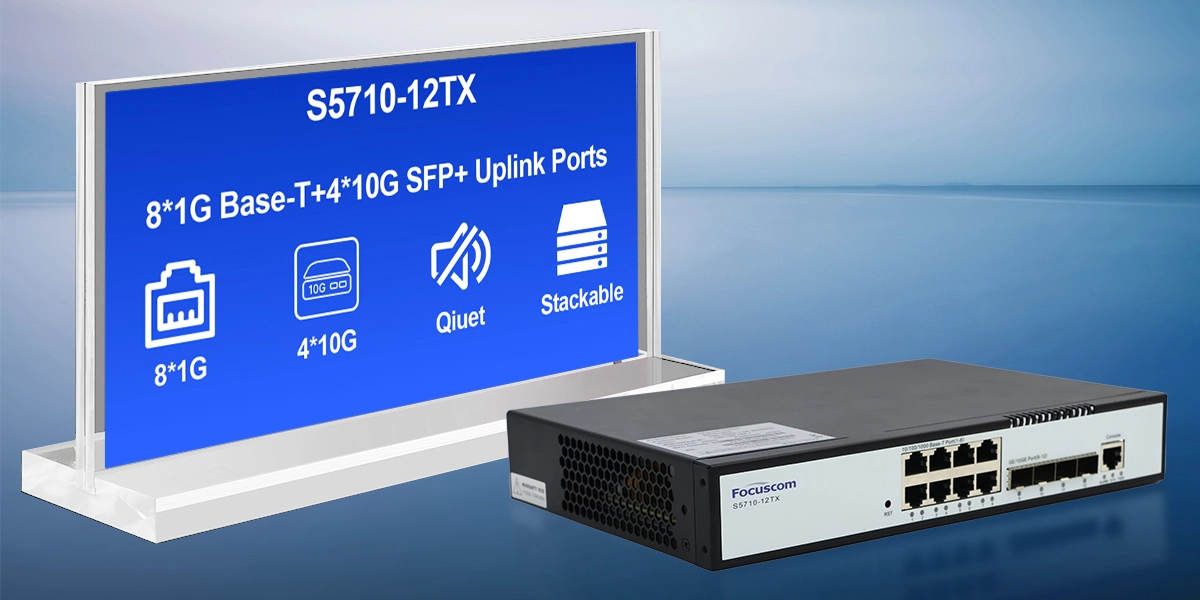

Compact 8-Port Gigabit Design with High-Speed 10G Uplinks
The S5710-12TX offers a space-saving form factor with 8 x 1G Base-T ports and 4 x 10G SFP+ uplinks, ideal for small wiring closets or as a top-of-rack switch. This configuration provides flexible, high-bandwidth connectivity for end devices and ensures a non-blocking backbone connection to your core network, preventing data bottlenecks.

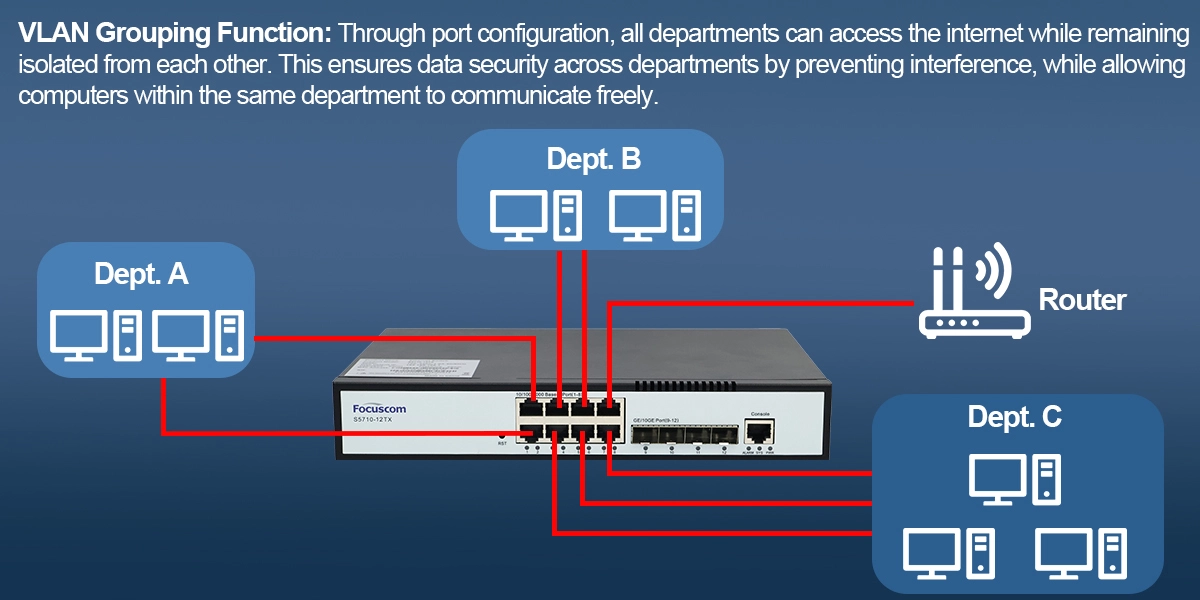

Secure Departmental Segmentation with 802.1Q VLAN
Enhance data security and reduce broadcast traffic with advanced VLAN support. The S5710-12TX allows you to create isolated virtual networks for different departments, preventing unauthorized access between groups while allowing seamless communication within the same department and shared internet access for all.

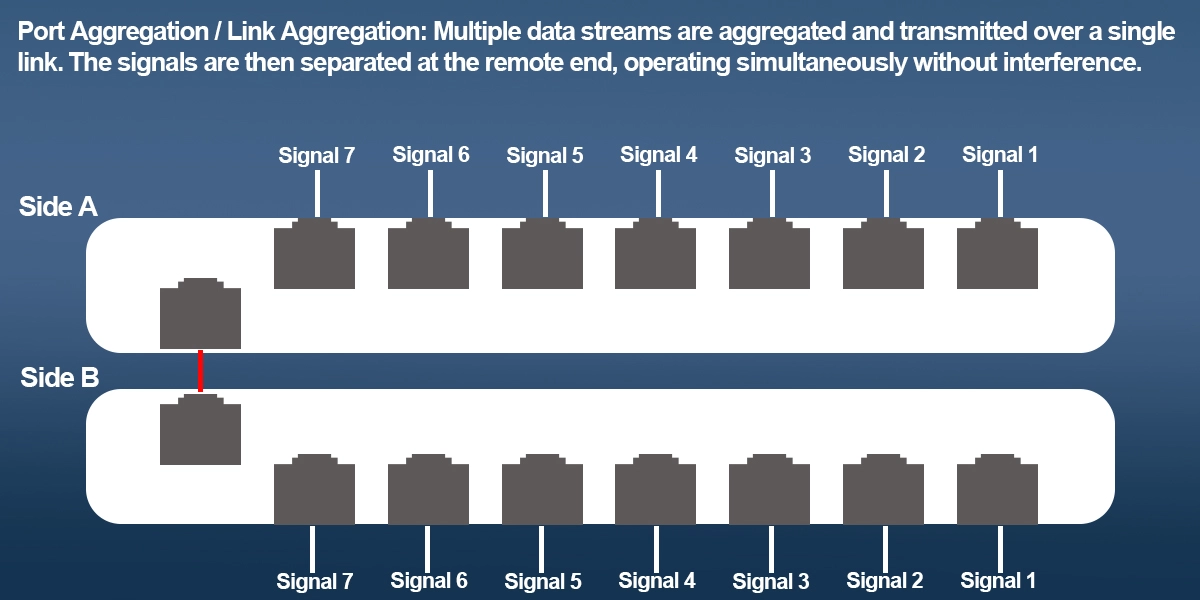

Increased Bandwidth and Redundancy via Port Aggregation
Boost link capacity and resilience with Static and LACP Port Aggregation. This feature allows you to combine multiple physical ports into a single, logical high-bandwidth trunk, providing both increased throughput for critical connections and inherent link redundancy for a more reliable network infrastructure.

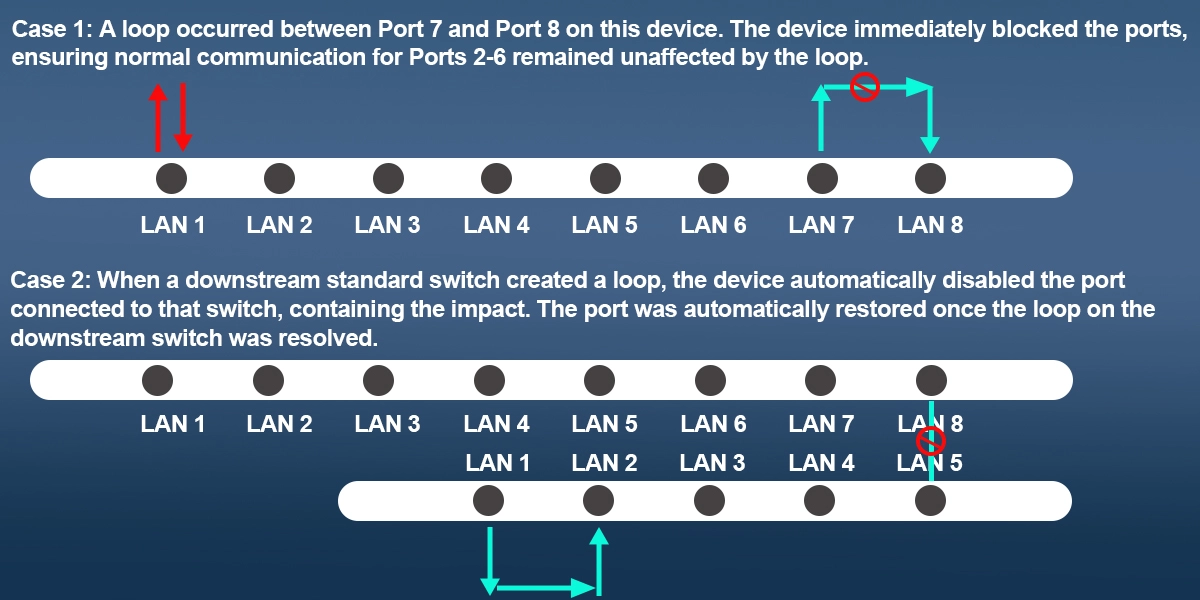

Automatic Loop Prevention for Uninterrupted Network Uptime
Safeguard your network from accidental cabling loops with built-in STP/RSTP/MSTP protocols. This enterprise-grade feature automatically detects and blocks looped ports, whether they occur directly on the switch or on a downstream connected device, effectively containing the fault and ensuring the rest of your network remains operational and stable.

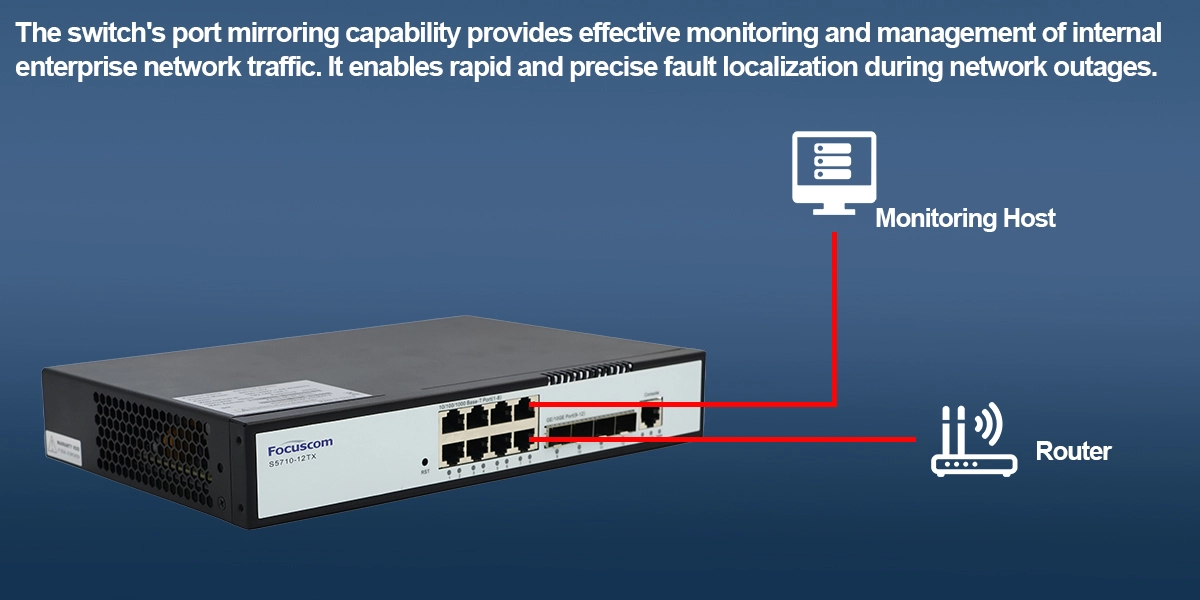

Advanced Traffic Monitoring with Multi-Port Mirroring
Gain deep visibility into your network traffic for troubleshooting and security with Port Mirroring. This feature allows you to non-intrusively copy traffic from any port to a monitoring host, enabling rapid fault localization, performance analysis, and enhanced network security monitoring without impacting data flow.

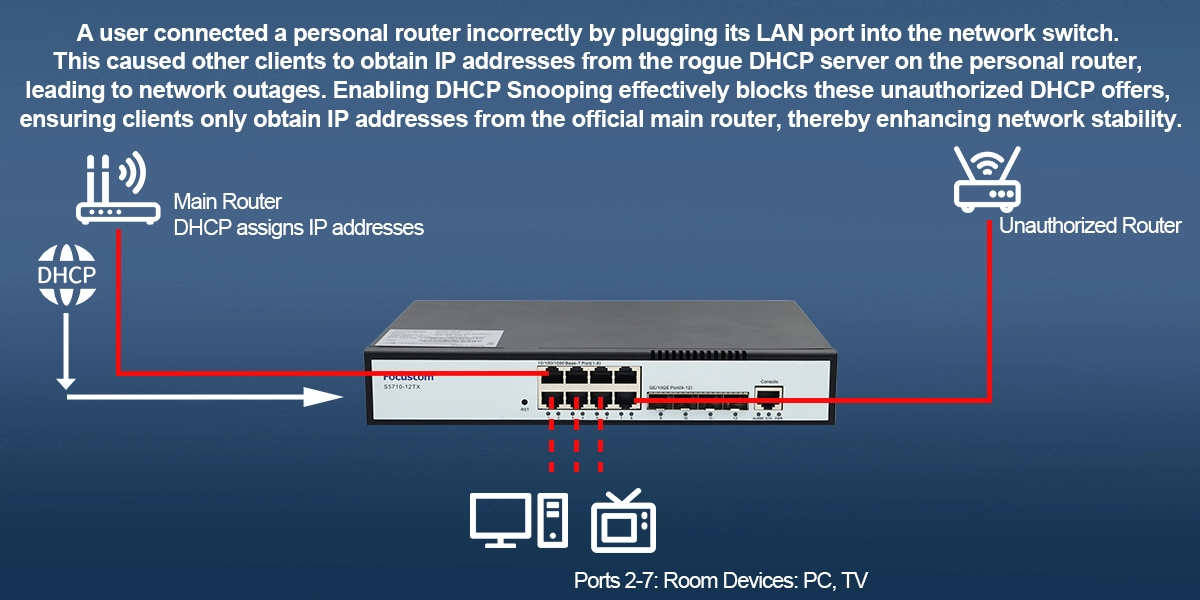

Defend Against Rogue DHCP Servers with DHCP Snooping
Eliminate network outages caused by unauthorized routers. By enabling the DHCP Snooping feature, this switch blocks malicious or misconfigured DHCP offers, ensuring that all clients reliably obtain their IP addresses only from the trusted official main router, thereby guaranteeing network stability and security.

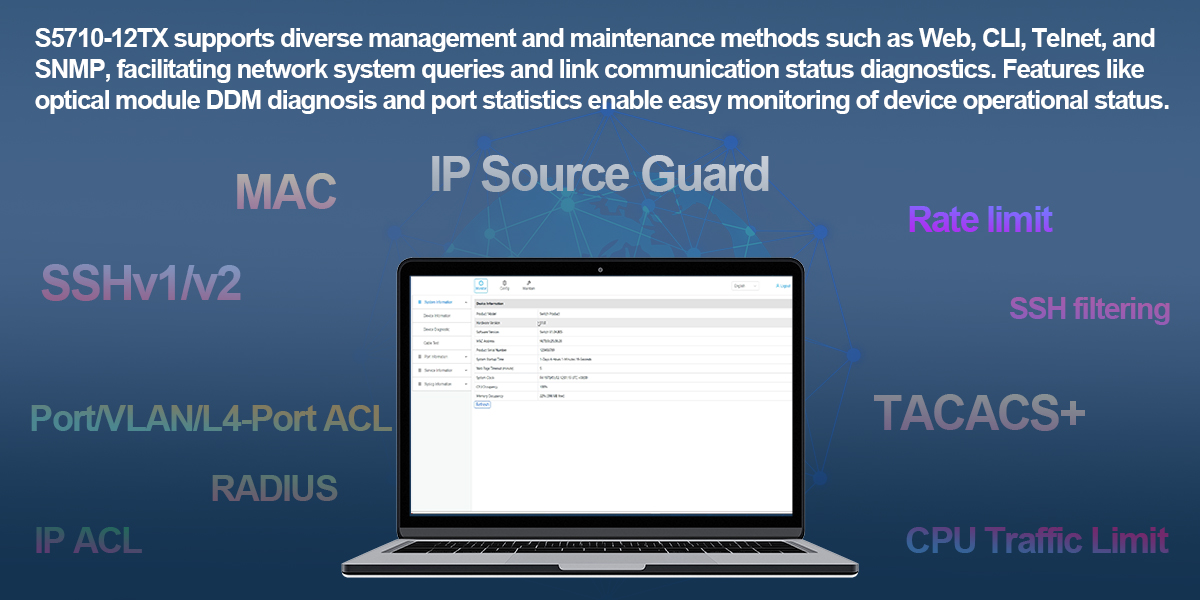

1. Multi-Method Management with Comprehensive ACL Security
  Configure and monitor your network with ease using flexible management options including Web, CLI, Telnet, and SNMP. For enhanced security, the switch supports robust Access Control Lists (ACL) at the Port, VLAN, and IP level, enabling granular traffic filtering and integration with RADIUS/TACACS+ authentication servers.

Specification

Function Overview:
Support for 802.1Q VLAN
Support for QoS (Quality of Service)
  Loop Prevention (e.g., STP/RSTP/MSTP)
  Port Rate Limiting
   Port Aggregation (Static/LACP)
   Port Mirroring (Multi-port mirroring)
   Storm Control (Broadcast/Unknown Unicast/Multicast)
  Support for IGMP v1/v2/v3 Multicast
  DHCP Snooping
  IP Source Guard

Key Features

8*10/100/1000M Base-T RJ45 port, 4*1GE/10GE SFP+ port

Support IPv4/IPv6 dual protocol stack platform, Support multiple link redundancy and network redundancy protocols such as STP/RSTP/MSTP/ERPS/LACP

Support ACL security filtering mechanism, Support ARP/DHCP attack automatic protection

Support DHCP-snooping/IP-source-Guard/802.1X and other security features

Support CFM、EFM, support IPv4/IPv6 dual protocol stack platform , Support VRRP、CLI、Telnet、WEB、SNMP V1/V2/V3、SSHv2 mode

Support link protection functions such as BFD, FlexLink, LACP and ERRP

Support ACL, QoS, Multicast, and so on

Support DHCP Server and DHCP Replay, Support Ethernet OAM protocol

Support IPv4/IPv6 static route, Support dynamic route RIP/OSPF/BGP/ISI

Product Description

Interface	8* 10/100/1000M Base-T RJ45 port 4* SFP/10G SFP+ port	System Management	Support FTP, TFTP file upload and download Support SNTP; Support system work log Support LLDP neighbor device discovery protocol Support 802.3ah Etherner OAM Support RFC1213 SNMP system management Support Ping and Traceroute Support WEB-based configure operation management Support the whole machine power failure alarm function

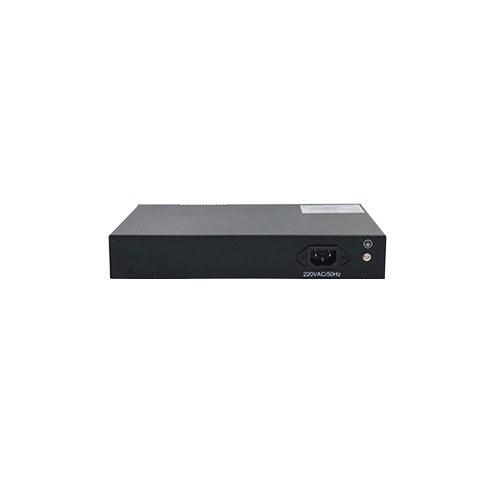

Environment Temperature	Working Temperature: -15°C～55°C Storage Temperature: -40°C～70°C Relative Humidity: 10%～90%, non-condensing	Power Supply	AC: 100～240V 50/60Hz DC: 40V~60V
Dimension & Weight	27018044mm (LWH） 1.6kg	Power Consumption	Full-load Power ≤20W No-load Power ≤10W

Purchase Info

Purchase Info

Model	Description
S5710-12TX	8* 10/100/1000M Base-T RJ45 RJ45 Port; 4* SFP/10G SFP+ Port
	Fixed internal power supply, Single, 100-240 VAC 47-63Hz
	CN / EU / USA Plug Optional
