L3 Managed Switch

Name: Network Switch Layer3 Managed Switch Gigbit Ethernet Access Layer Switch S5630-48SF4SX
Brand: Focuscom
SKU: 01056
Availability: InStock
Rating: 5 (1 reviews)

Home > Networking Switch > L3 Managed Switch

Description Specification Purchase Info

Description

High-density 48-port L3 Access Layer Fiber Switch

S5630-48SF4SX offers 48* 1G SFP ports and 4* 1G/10G SFP+ uplinks for flexible, scalable connectivity.

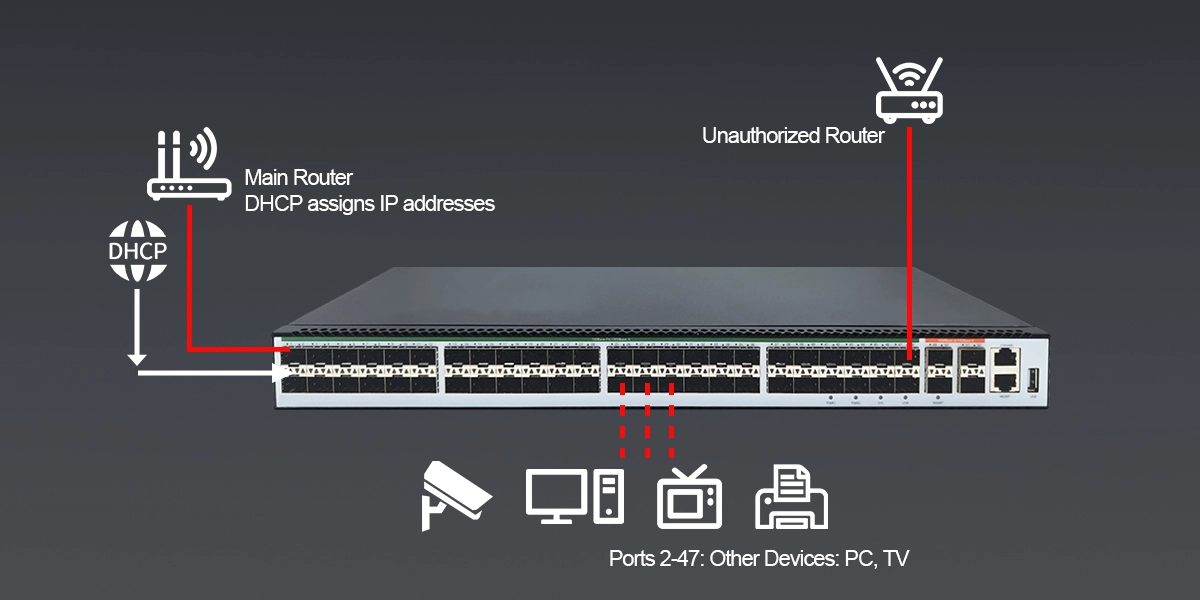

DHCP Snooping: Prevents rogue DHCP server attacks

This feature filters unauthorized DHCP messages to ensure network integrity.

IP & ARP Protection: Mitigates IP spoofing and ARP floods

IP Source Guard and ARP protection work together to secure the access layer.

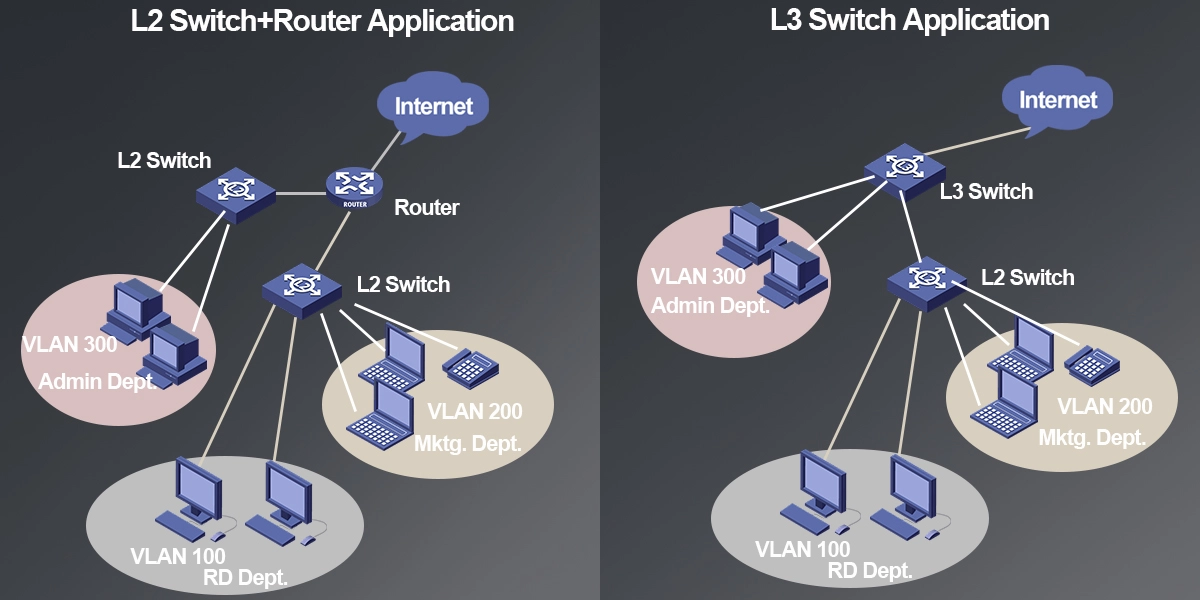

Layer 3 Routing: Supports advanced dynamic routing

Full protocol support including OSPF and BGP makes it ideal for enterprise core layers.

Management: Multiple Options: Offers versatile management methods

Choose from CLI, WEB GUI, or SNMP, with a dedicated out-of-band management port.

Our IP portfolio includes 40+ software copyrights demonstrating deep development capacity, plus 10+ patents proving our hardware and algorithm expertise.

Specification

Key Feature

48*100/1000M Base-X, 4*1000M/10G Base-X SFP+

Based on Linux operating system, support IPv4/IPv6 dual protocol stack platform

Support multiple link redundancy and network redundancy protocols such as STP/RSTP/MSTP/LACP

Support ACL security filtering mechanism, which can provide security control functions based on MAC, IP, L4 port

Support Combine the processing power of multiple switches into a single logical device

Support When a switch in the stack system fails, traffic can be automatically switched to other switches, network availability and redundancy

Support Stacking simplifies the management process. Administrators only need to manage one logical device

Support classification based on service flow and Qos flow control function

Support queue scheduling algorithms such as SP/WRR/SP+WRR

Support DHCP Server and DHCP Relay; Support static route

Support dynamic route such as RIP, OSPF, BGP

Support IPV4/IPV6 dual protocol stack, support RIPng、OSPFv3

Support FTP, TFTP file upload and download; Support SNTP Support LLDP neighbor device discovery protocol

Support RFC1213 SNMP network management

Support Ping and Traceroute Supports configuration management based on WEB pages

Support CLI based on RS232 serial port, Telnet and SSHv2

Support WEB-based configure operation management, support SNMP V1/V2/V3

Support remote upgrade or equipment through FTP and TFTP

Product Description

Interface	48100/1000M Base-X, 41000M/10G Base-X optical ports	System Management	Supports CLI based on RS232 serial port, Telnet and SSHv2 Supports WEB-based configuration operation management, supports SNMP V1/V2/V3 Supports remote upgrade or device management via FTP and TFTP
Environment Temperature	Operating Temperature: -10°C～50°C Storage Temperature: -40°C～70°C Relative Humidity: 5%～95%, non-condensing	Power Supply	AC: 100～240V 47/63Hz
Dimension & Weight	44033044mm(LWH) 4.55kg	Power Consumption	Idle≤16W Full Load≤80W

Purchase Info

Purchase Info

Model	Description
S5630-48SF4SX	48100/1000M Base-X, 41000M/10G Base-X SFP+

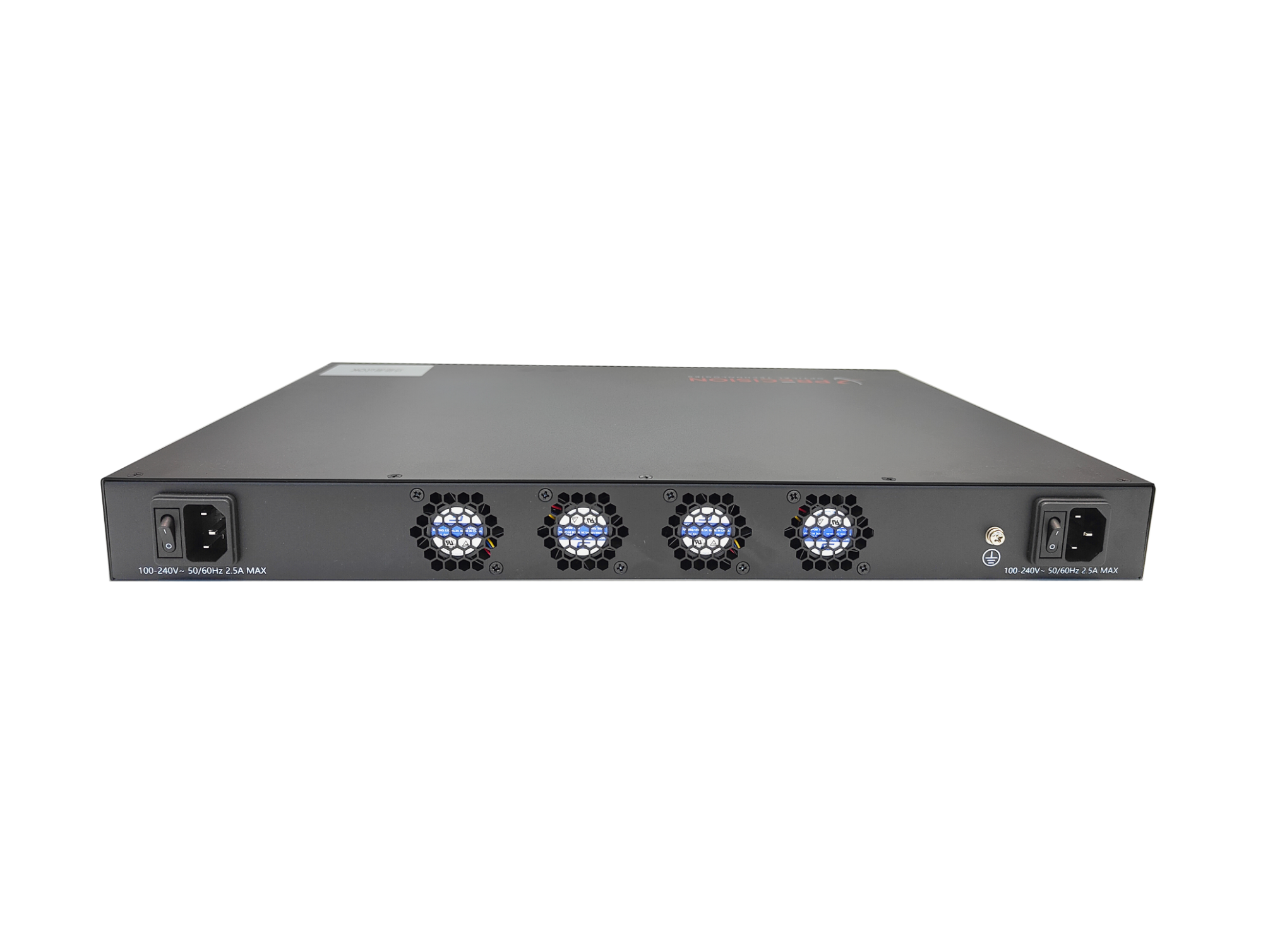

	Fixed internal power supply, Dual, AC+AC, 100-240 VAC 47-63Hz
	CN / EU / USA Plug Optional
