L2+ Features: Support 4K VLAN based on port, MAC, and protocol; Support dual Tag VLAN (Q-in-Q); Support Spanning Tree protocols (STP/RSTP/MSTP); Support Link Aggregation (Static/LACP); Support port mirroring (multi-port analysis); Support storm control for broadcast, unknown unicast and multicast.
L3 Features: Support static IPv4/IPv6 unicast routing; Support strategy-based routing; Support ARP protocol (8K ARP table).
Multicast: Support IGMP v1/v2/v3 snooping; Support 4K multicast groups.
QoS (Quality of Service): Support port rate limiting and flow-based speed limiting; Support classification based on service flow; Support queue scheduling algorithms SP/WRR/SP+WRR; Support 802.1p and DSCP priority marking.
Security: Support IP+MAC+Port binding; Support user authentication based on RADIUS and TACACS+; Support DHCP Snooping and IP Source Guard; Support ACL security filtering.
Management & Maintenance: Support CLI management via RS232 console, Telnet, and SSHv2; Support WEB-based GUI management; Support SNMP V1/V2/V3; Support remote firmware upgrade via FTP/TFTP; Support static data packet sampling and SFLOW function for traffic monitoring.

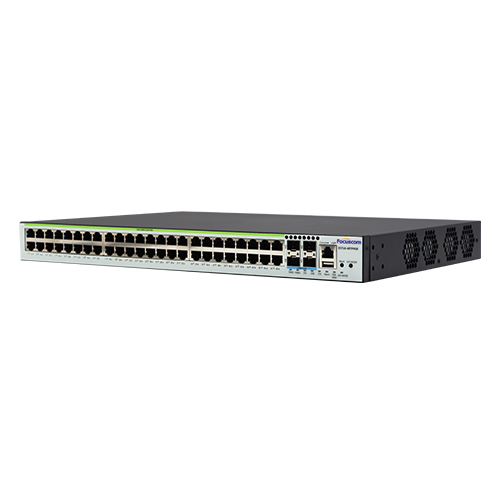

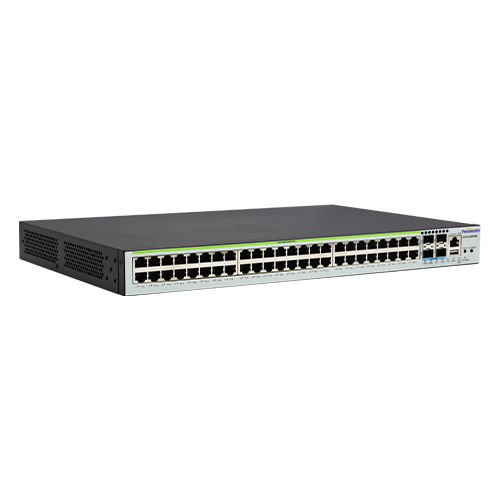

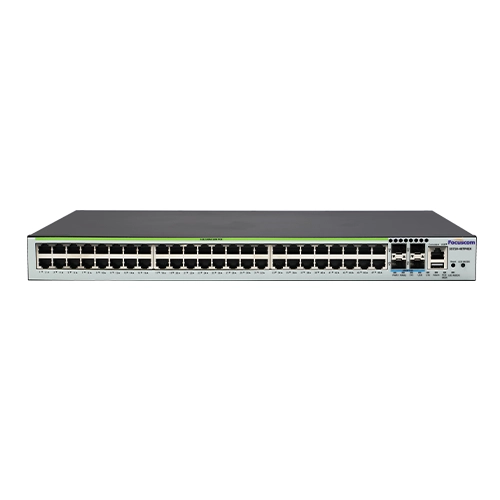

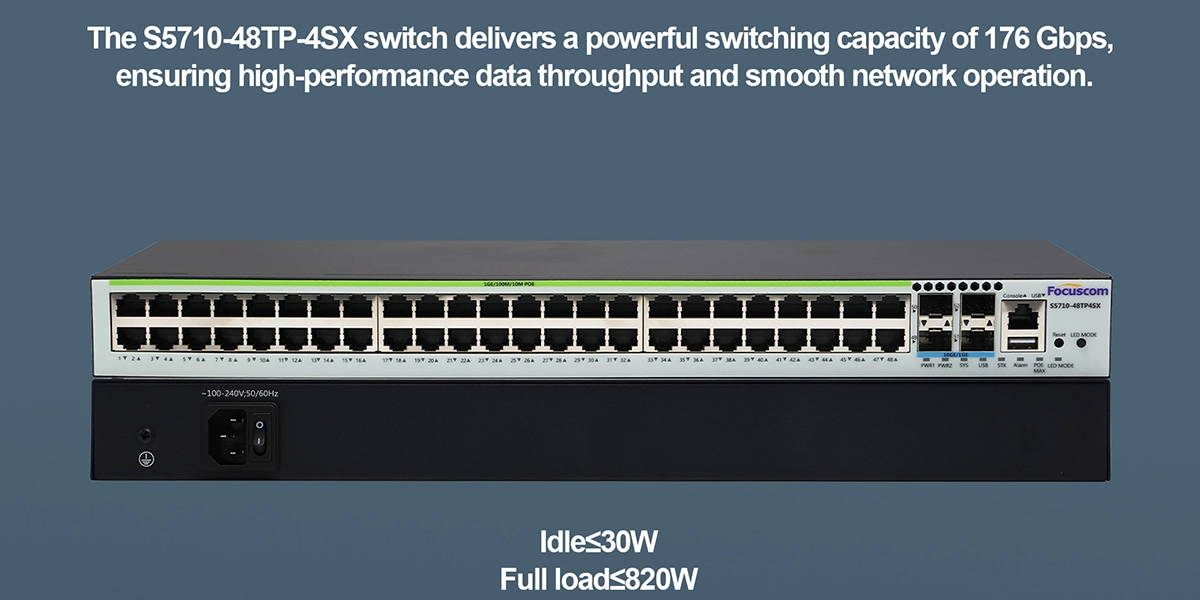

High Performance & Port Density: Provides 48*10/100/1000M Base-T PoE ports and 4*10G SFP+ uplink ports, delivering a switching capacity of 176 Gbps and a forwarding rate of 130.944 Mpps.

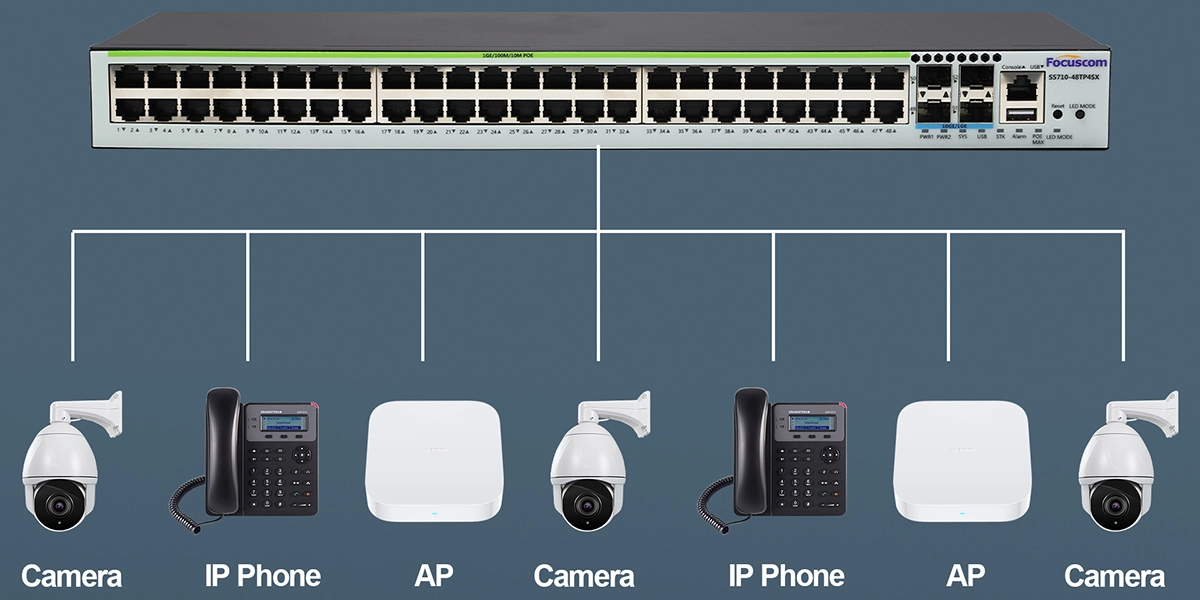

Power over Ethernet (PoE+): All 48 Gigabit ports support IEEE 802.3af/at, with a total PoE budget of 760W, providing up to 30W per port to power devices like PTZ cameras, high-speed APs, and IP phones.
Carrier-Level Reliability: Built on a Linux-based dual-stack platform, it supports various redundancy protocols such as MSTP, LACP for link aggregation, and FlexLink for fast link protection.
Advanced Security & Management: Integrates comprehensive security mechanisms including DHCP Snooping, 802.1X, and IP Source Guard. Offers rich management options through CLI, Web, and SNMP for easy deployment in complex networks.
| Interface | 48*1GE POE RJ45 Port 4*1GE/10GE SFP+ Port |
System Management | Support FTP, TFTP file upload and download Support SNTP Support LLDP neighbor device discovery protocol Support Ping and Traceroute Supports configuration management based on WEB pages |
| Environment Temperature | Working Temperature: -10°C～45°C Storage Temperature: -40°C～70°C Relative Humidity: 5%～95%, non-condensing |
Power Supply | AC: 100～240V 47/63Hz |
| Dimension & Weight | 440*430*44mm (L*W*H） 5.9kg |
Power Consumption | Idle≤30W Full load≤820W |
| Model | Description |
| S5710-48TP4SX | 48*10/100/1000M Base-T RJ45 (PoE+), 4*10G SFP+ Uplink Ports |

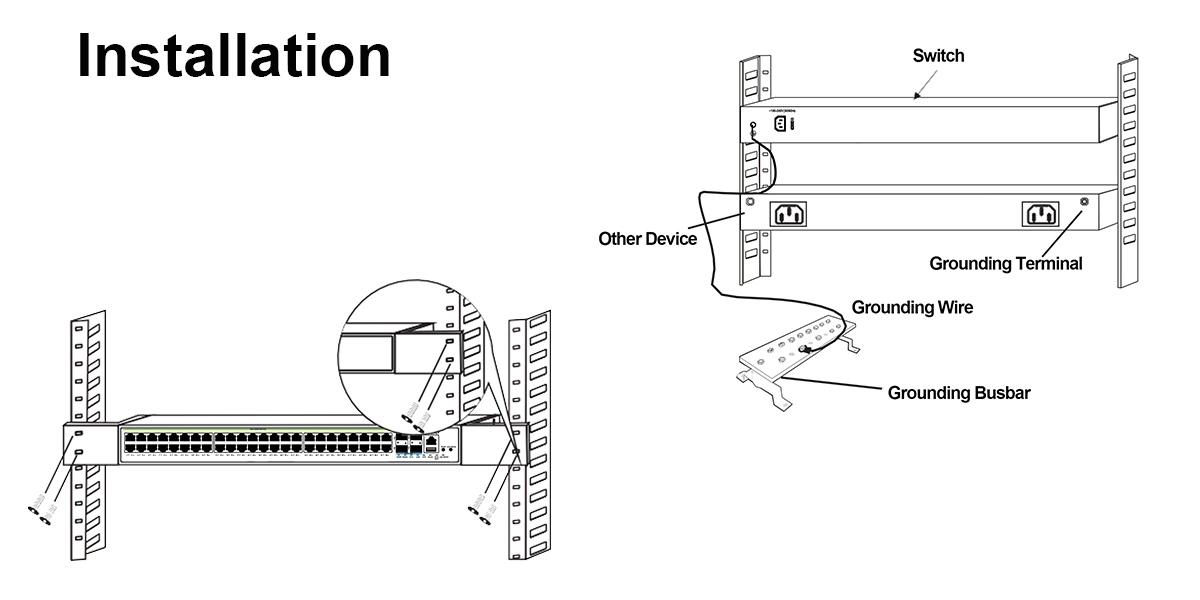

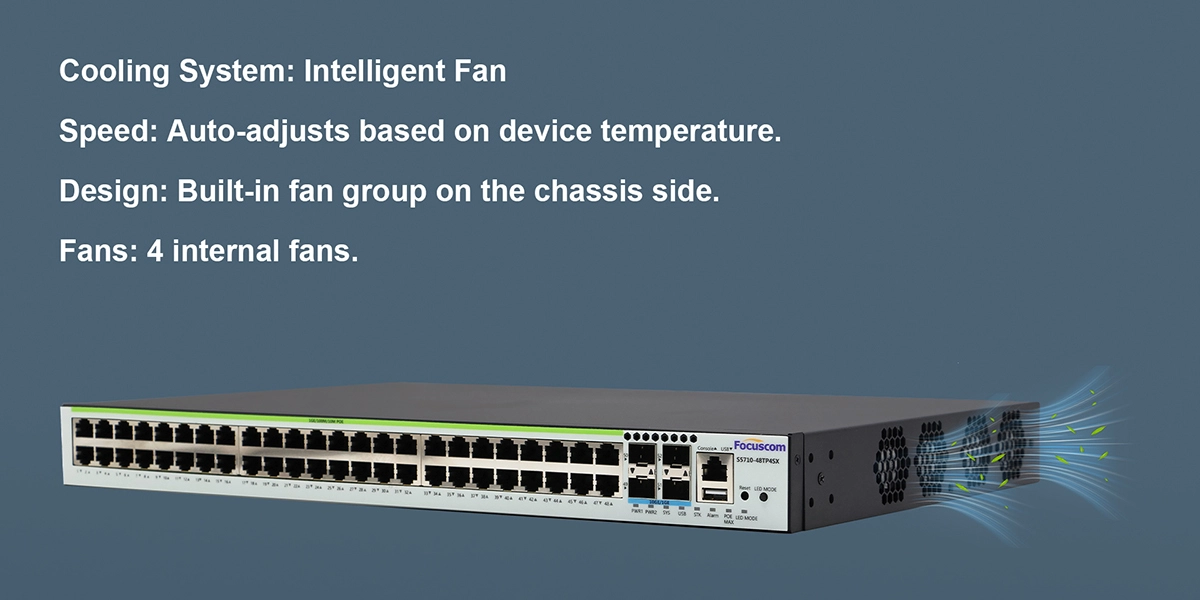

| PoE Budget: 760W (IEEE 802.3af/at), Single Port up to 30W Internal AC Power Supply (100-240V) 19-inch Rack-mountable (440×330×44mm), Built-in 4 Smart Fans |
|
| CN / EU / USA Plug Optional |
