High-Density Multi-Gigabit Access: 48 ports supporting 1G/2.5G/5G speeds for flexible connectivity.
High-Speed Uplinks: 4x 10G SFP+ and 2x 100G QSFP28 ports for aggregation and backbone connections.

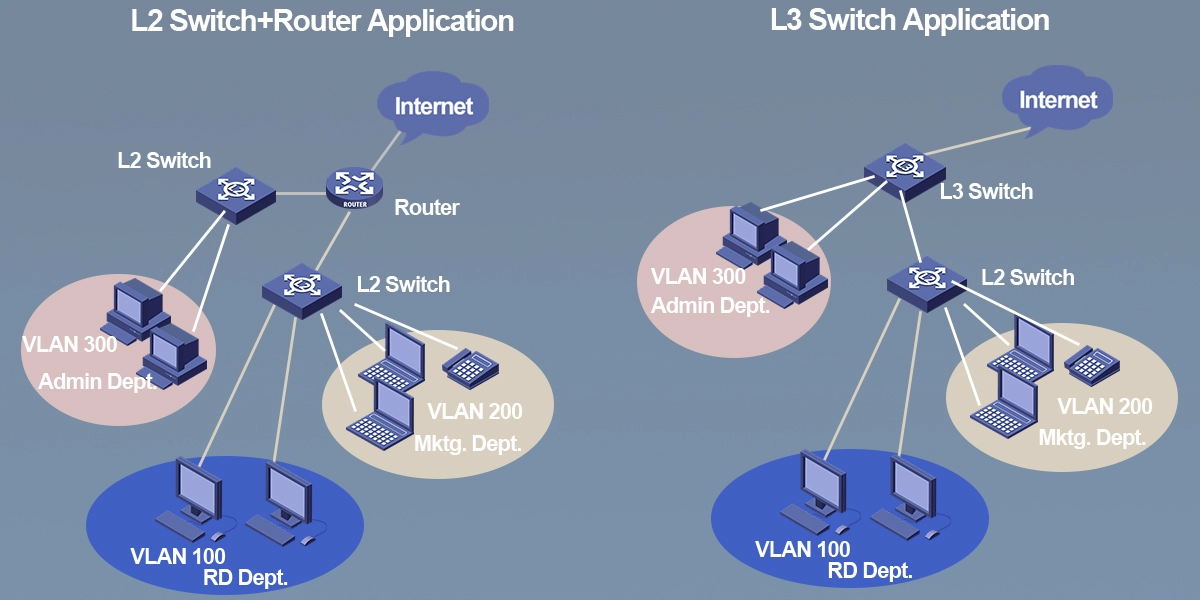

Layer 3 Routing: Supports static and dynamic routing (RIP, OSPF, BGP) for IPv4 and IPv6.

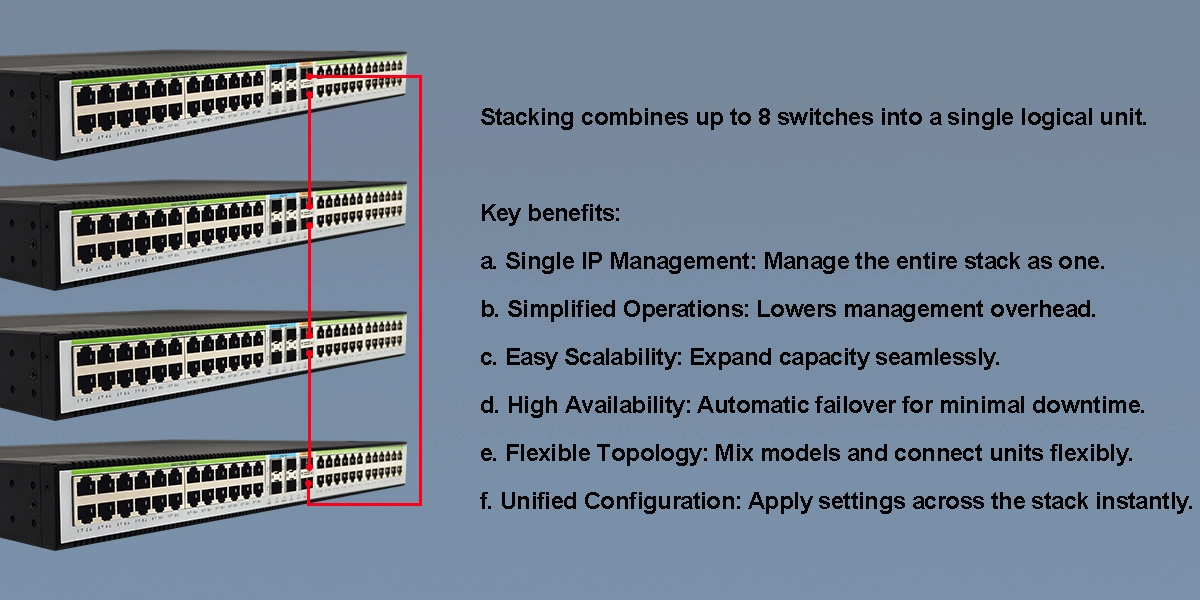

Stacking Technology: Allows multiple switches to be managed as one logical unit for scalability.
Advanced Security: Features ACL, DHCP Snooping, IP Source Guard, and 802.1X for robust network protection.

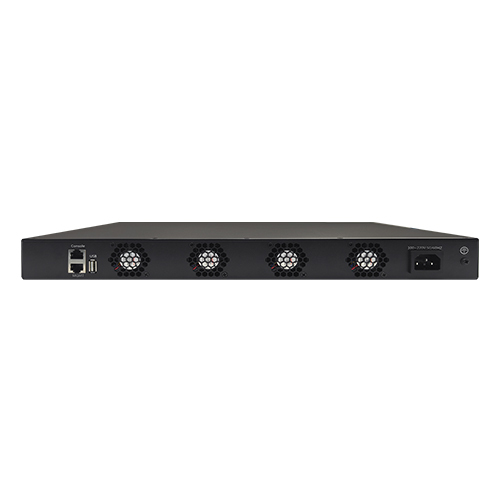

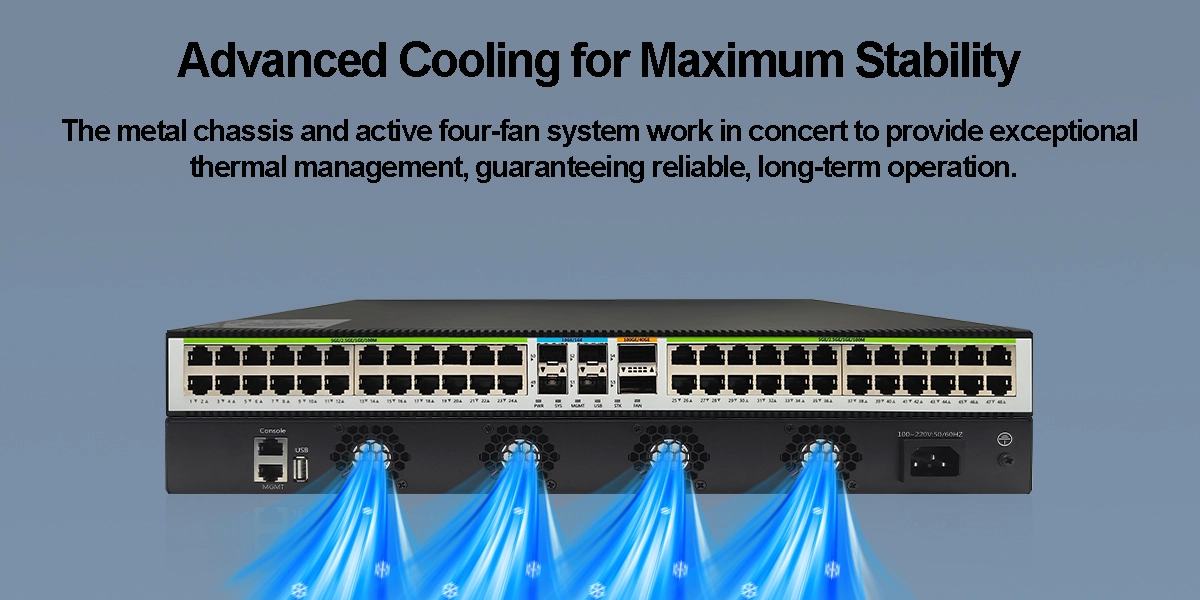

Carrier-Grade Reliability: Includes redundant hot-swappable power supplies and fan modules.
Comprehensive Management: Manage via CLI, WEB, SNMP, Telnet, or SSH for easy operation.
Powerful QoS: Implements traffic prioritization, classification, and rate limiting.
Flexible Mirroring: Supports port-based and flow-based mirroring for network analysis.
VXLAN Support: Enables network virtualization for modern data center architectures.
| Attribute | Specification |
|---|---|
| Product Model | S5863-48U4SX2Q |

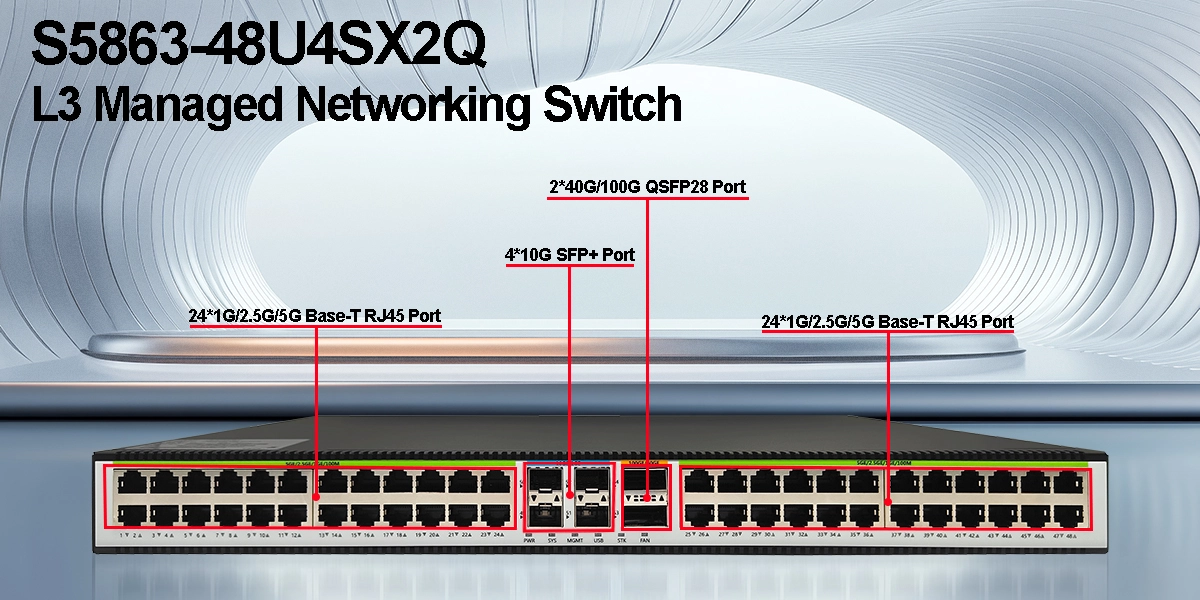

| Copper Ports | 48 x 1G/2.5G/5G Base-T (RJ45) |
| SFP+ Ports | 4 x 1G/10G SFP+ |
| QSFP28 Uplinks | 2 x 40G/100G QSFP28 |
| Switching Capacity | 960 Gbps |
| Forwarding Rate | 714 Mpps |
| Power Supply | Redundant, Hot-swappable (AC or DC) |
| Dimensions (WxDxH) | 440 x 410 x 44 mm (19-inch Rack-mount) |
| Operating Temperature | -10°C to 50°C |
| Model | Description |
|---|---|
| S5863-48U4SX2Q | 48*1G/2.5G/5G Base-T & 4*1GE/10GE SFP+ & 2*40GE/100GE QSFP28 L3 Managed Switch; Optional Dual Redundant AC or DC Power Supply. |
