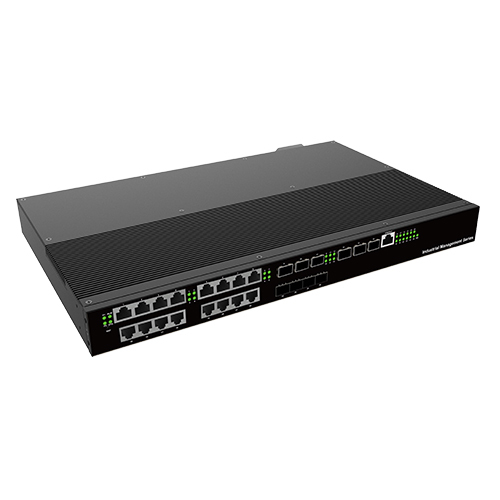

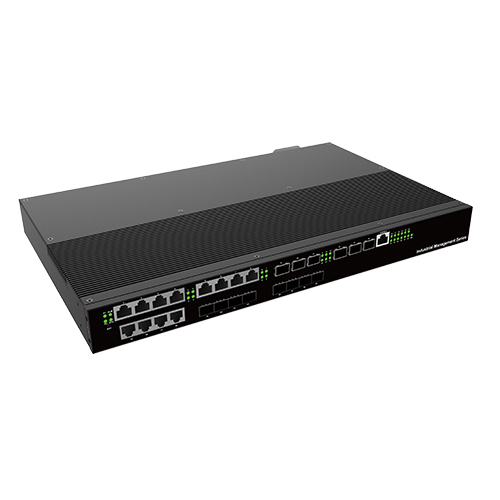

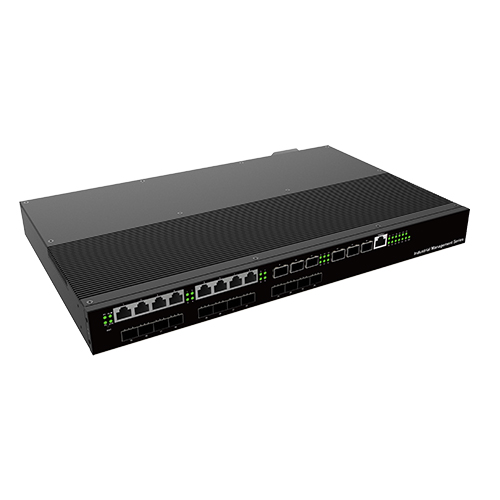

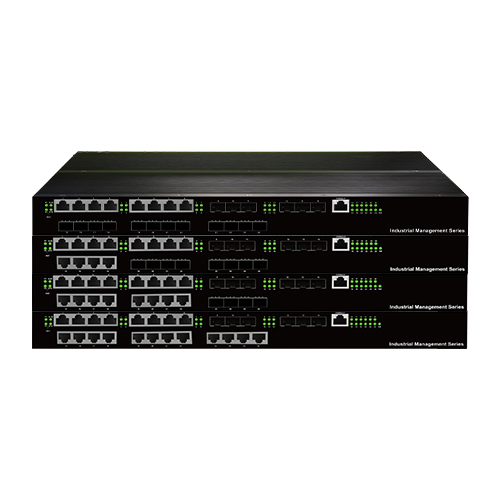

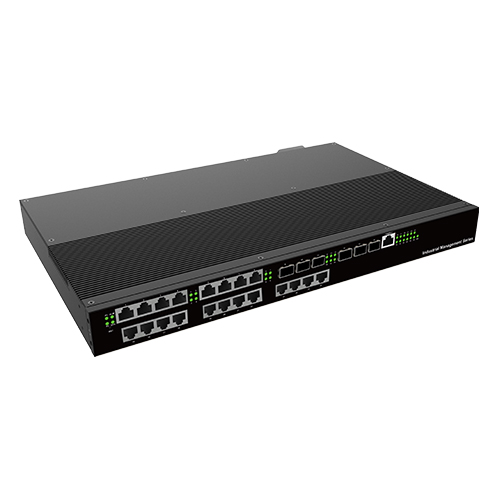

S3000 Series: Four industrial L3 managed switch models
They offer varying combinations of 8 to 20 Gigabit copper ports and 18 to 6 SFP slots for flexible network connectivity.

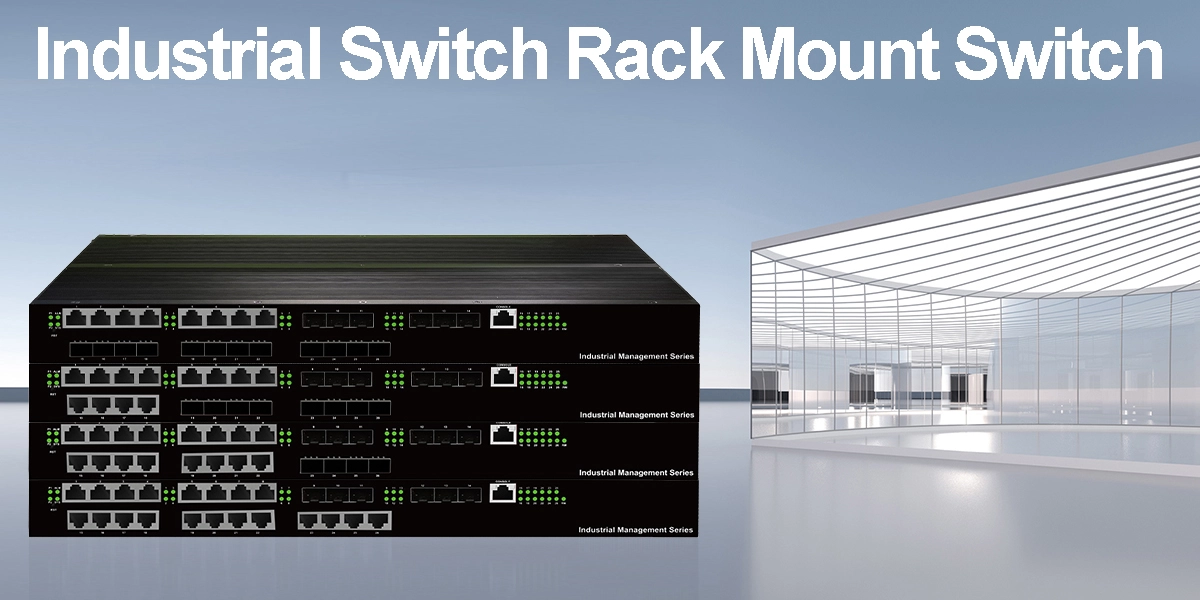

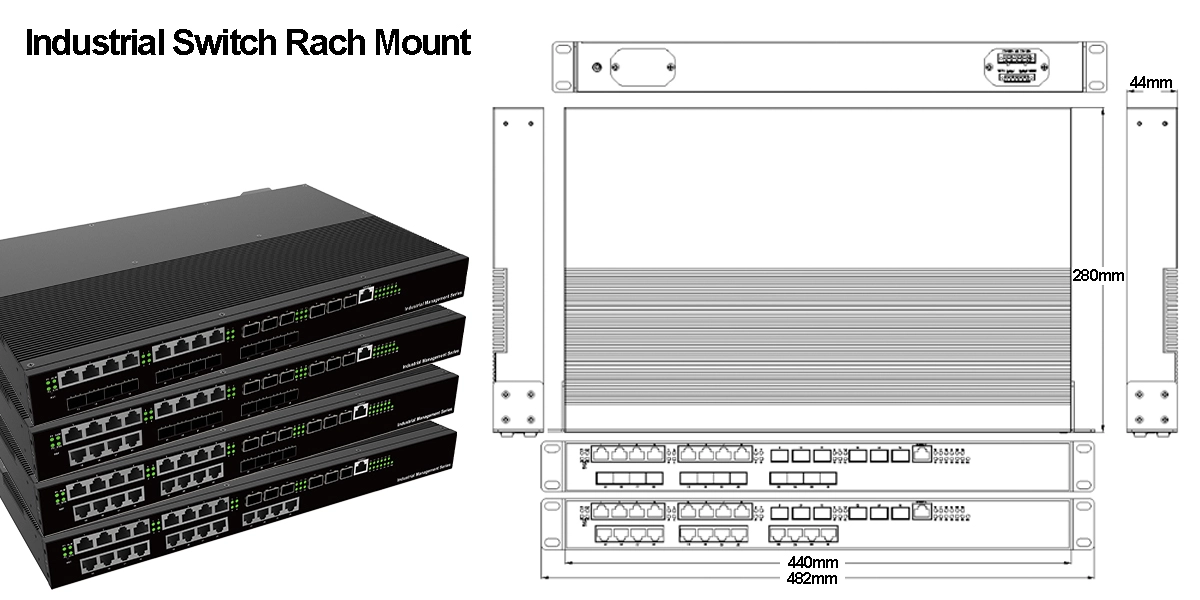

Compact 1U rack size
Its dimensions are 440mm (L) x 280mm (W) x 44mm (H), saving space in industrial control cabinets.
All Gigabit copper and SFP ports
Provides multiple 10/100/1000Base-T(X) RJ45 ports and 100/1000M SFP slots, ensuring wire-speed forwarding.

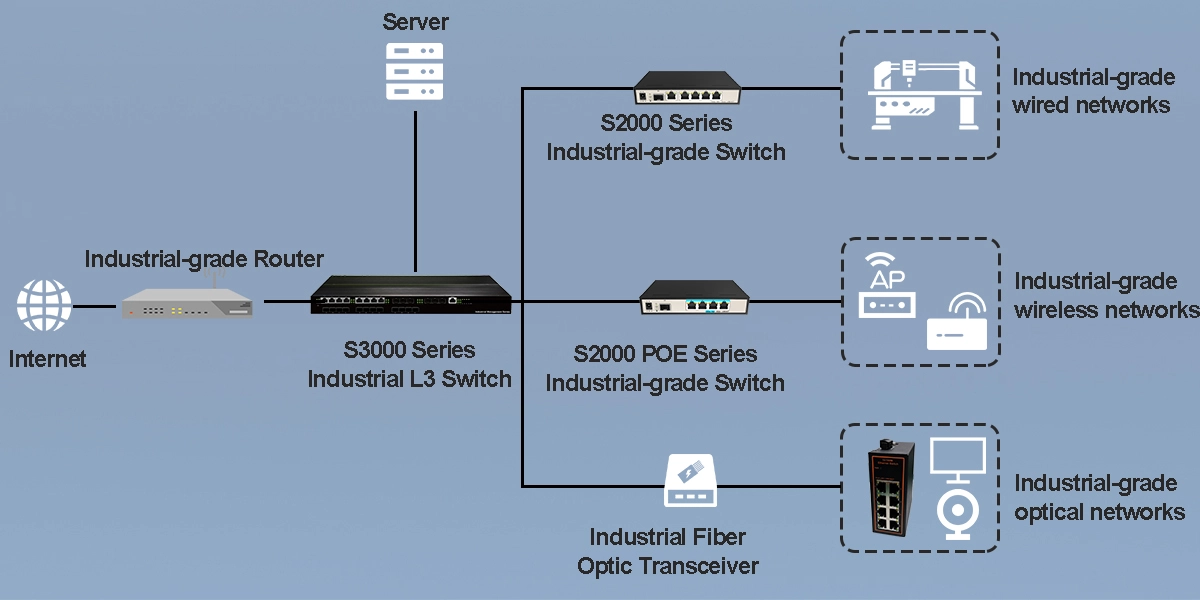

Connects servers to industrial endpoints
The S3000 series acts as the core industrial-grade L3 switch, linking routers and managing data flow to wired, wireless, and optical terminal devices.
Advanced network management features
It supports DHCP, LLDP, VLAN, QoS, and Static/RIP/OSPF routing for efficient and secure traffic control.
Built for harsh environments
It undergoes rigorous tests for ESD, surge, vibration, and wide temperature ranges from -40°C to 75°C.
For smart infrastructure projects
These switches are deployed in smart cities, intelligent transportation, new energy systems, and automated farms.
Key Features
Industrial L2/L3 Full Management
Wide Operating Temperature (-40°C ~ +75°C)
Dual Redundant Wide Voltage Power Input (AC/DC)
Fanless, Full Metal Enclosure, IP40 Protection
Rich Gigabit Ports: Copper RJ45 & SFP Slots
Supports ERPS (G.8032) Ring Protocol (<20ms recovery)
Advanced Features: VLAN, QoS, OSPF/RIP, DHCP, ACL
Compliant with Industrial EMC & Environmental Standards
| Attribute | Description |
|---|---|
| Series | S3000 Series Industrial L2/L3 Fully Managed Gigabit Switches |
| Management | Layer 3 (Static Routing, RIP, OSPF) |
| Copper Ports | 10/100/1000Base-T(X) RJ45, Auto-MDI/MDIX |
| Fiber SFP Slots | 100/1000M |
| Power Supply | Dual redundant AC 100~240V / DC 100~300V (Optional) |
| Operating Temp | -40°C ~ +75°C |
| Ingress Protection | IP40, All-metal Sealed Housing |
| Cooling | Fanless Design |
| Standards | IEC61000-4-2/3/4/5/6 (ESD, RS, EFT, Surge, CS) |
Purchase Info

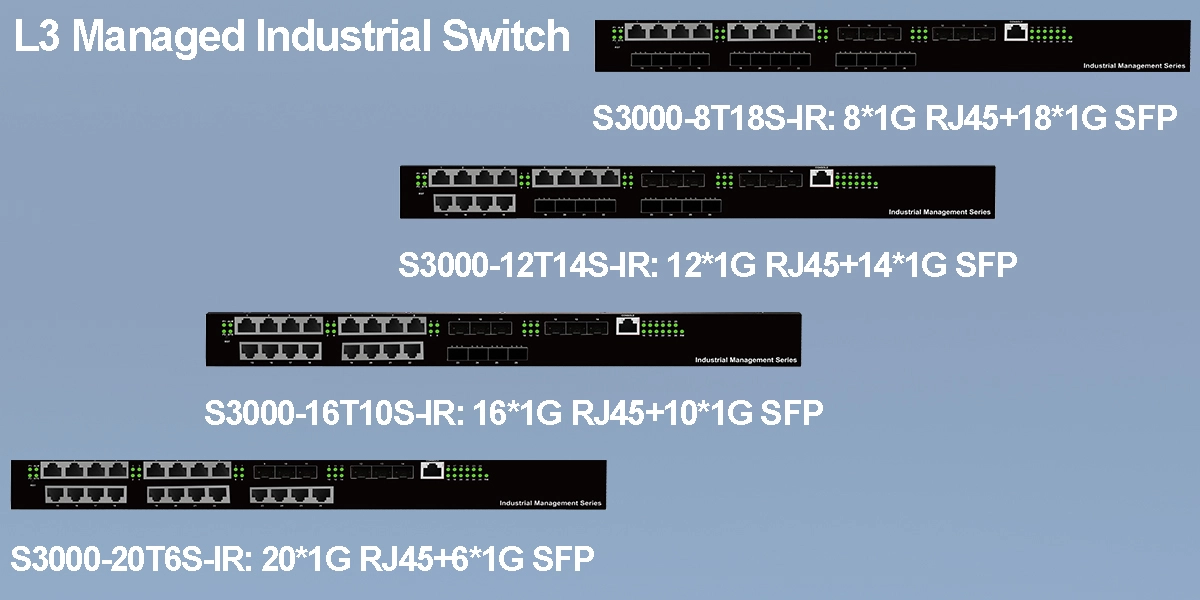

| Model | Description |
|---|---|
| S3000-20T6S-IR | 1U, 19” Rack-mounted, L3 Managed, 20x Gigabit RJ45 Ports, 6x SFP Slots |
| S3000-16T10S-IR | 1U, 19” Rack-mounted, L3 Managed, 16x Gigabit RJ45 Ports, 10x SFP Slots |
| S3000-12T14S-IR | 1U, 19” Rack-mounted, L3 Managed, 12x Gigabit RJ45 Ports, 14x SFP Slots |
| S3000-8T18S-IR | 1U, 19” Rack-mounted, L3 Managed, 8x Gigabit RJ45 Ports, 18x SFP Slots |
