Key Features
Layer 3 Management: Supports static routing, RIP, and OSPF for advanced network routing and segmentation.
Industrial Robustness: Operates reliably in wide temperatures from -40°C to +75°C with a fanless design.

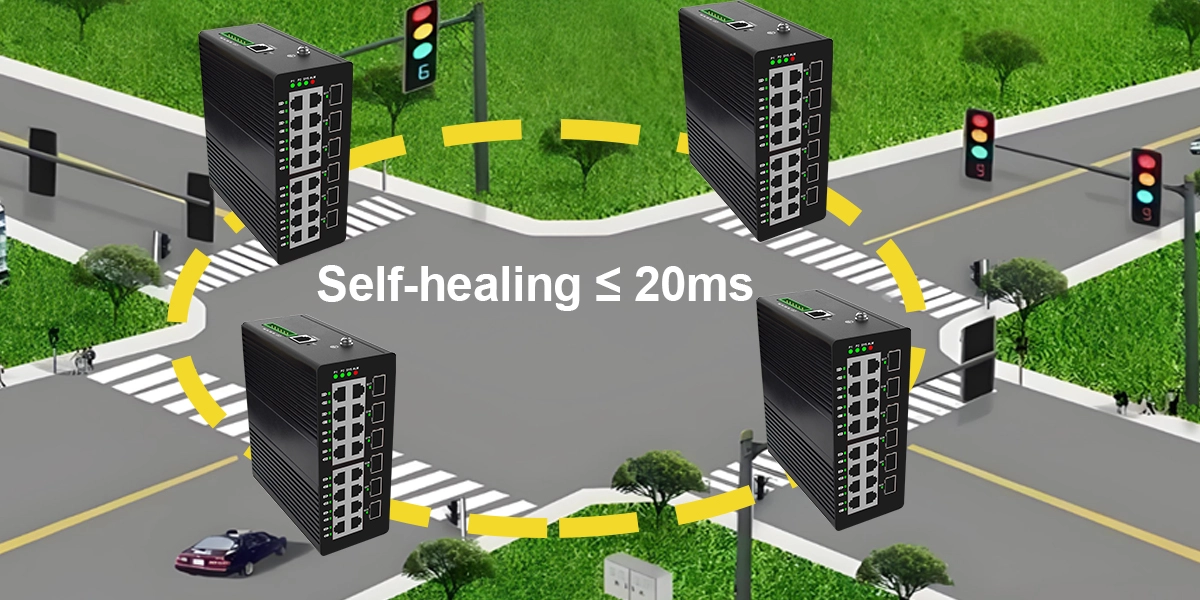

Fast Network Redundancy: Features ERPS (G.8032) protocol for sub-20ms network self-healing and high availability.
Dual Wide Voltage Input: Supports redundant 10~60V DC power supply for flexible and reliable deployment.
Enhanced Security: Offers 802.1X, ACL, Port Security, and Storm Control to protect network integrity.
Advanced QoS: Supports 8 priority queues and rate limiting to prioritize critical traffic like video and control data.
Flexible Management: Easily managed via Web, CLI, Telnet, or SNMP v1/v2/v3.

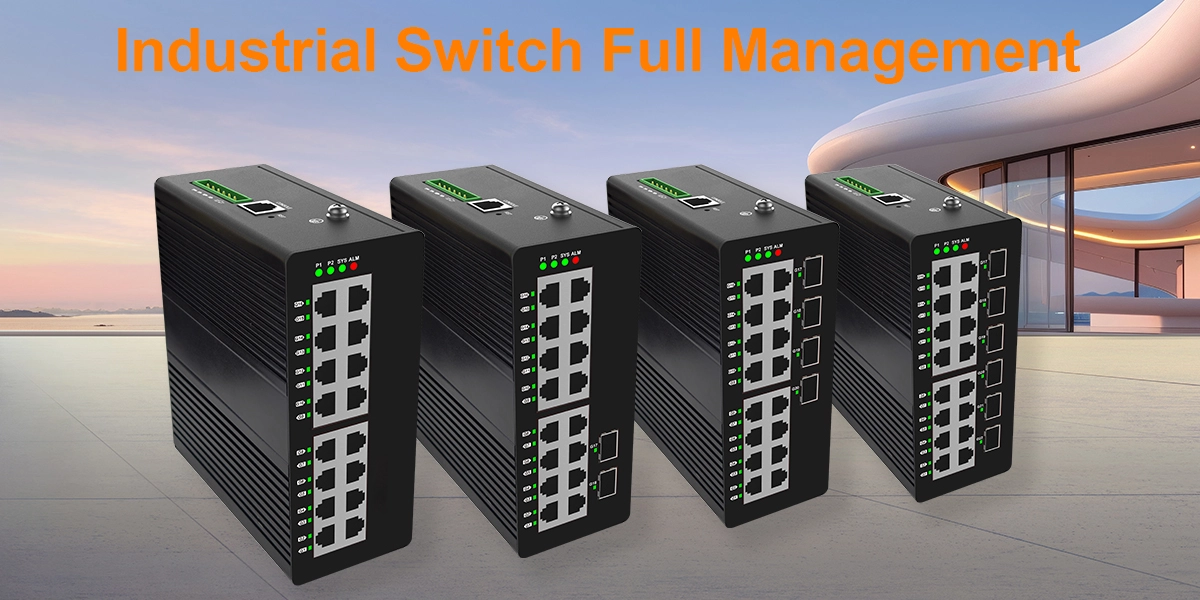

Rich Gigabit Interfaces: Multiple models with high-density copper ports and optional SFP uplinks for versatile connectivity.
Comprehensive Standards Compliance: Certified to withstand EMI, surge, ESD, vibration, and shock (IEC61000-4-2/3/4/5/6).
| Attribute | Description |
|---|---|
| Copper Ports | 16 x 10/100/1000Base-T(X) RJ45 |
| SFP Slots | 0 (16T) / 2 (16T2S) / 4 (16T4S) / 6 (16T6S) x 100/1000M |
| Console Port | 1 x RS232 (RJ45) |
| MAC Address Table | 8K |
| Packet Buffer | 4.1M |
| Power Supply | Dual redundant DC 12V/24V/48V (10~60V range) |
| Power Consumption | ≤18W |
| Operating Temperature | -40°C ~ +75°C |

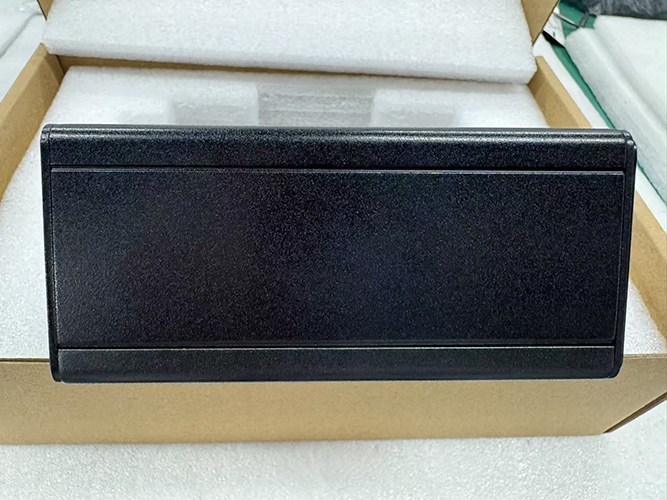

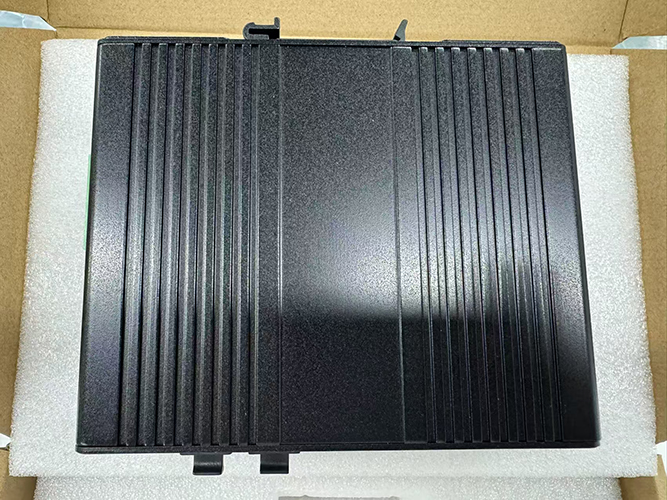

| Ingress Protection | IP40, Metal Housing |
| Dimensions (LxWxH) | 150mm x 130mm x 62mm |
| Installation | DIN-rail |
Purchase Info

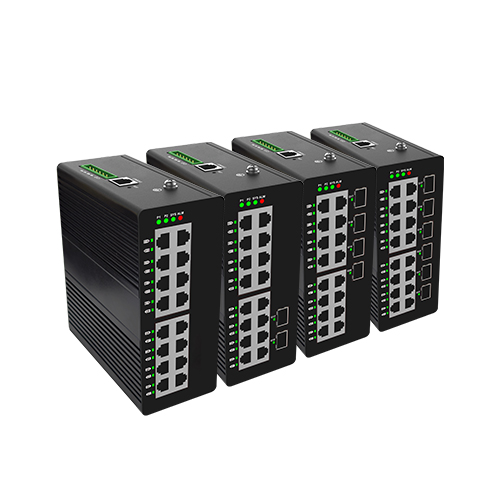

| Model | Description |
|---|---|
| S3000-16T-IK | Industrial DIN-rail L3 managed switch, 16xGbE RJ45, -40°C~75°C, dual DC input. |
| S3000-16T2S-IK | Industrial DIN-rail L3 managed switch, 16xGbE RJ45, 2xGigabit SFP, -40°C~75°C, dual DC input. |
| S3000-16T4S-IK | Industrial DIN-rail L3 managed switch, 16xGbE RJ45, 4xGigabit SFP, -40°C~75°C, dual DC input. |
| S3000-16T6S-IK | Industrial DIN-rail L3 managed switch, 16xGbE RJ45, 6xGigabit SFP, -40°C~75°C, dual DC input. |
