Rugged Industrial Design
Featuring an IP40 rated, all-metal sealed housing and a wide operating temperature range of -40°C to +80°C for harsh environments.

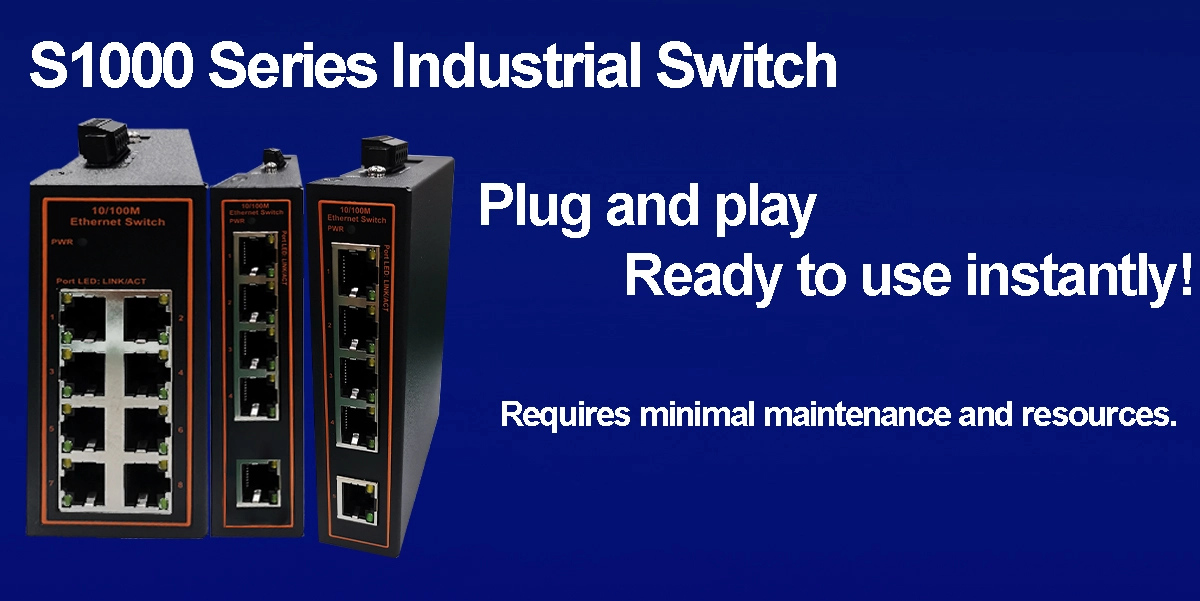

Plug-and-Play Operation
Unmanaged switches for simple deployment, offering immediate, maintenance-free network connectivity without any configuration needed.
Dual Redundant Power Input
Supports a wide DC voltage input from 10V to 60V, ensuring continuous operation and high reliability in volatile power conditions.
Compact & Space-Saving

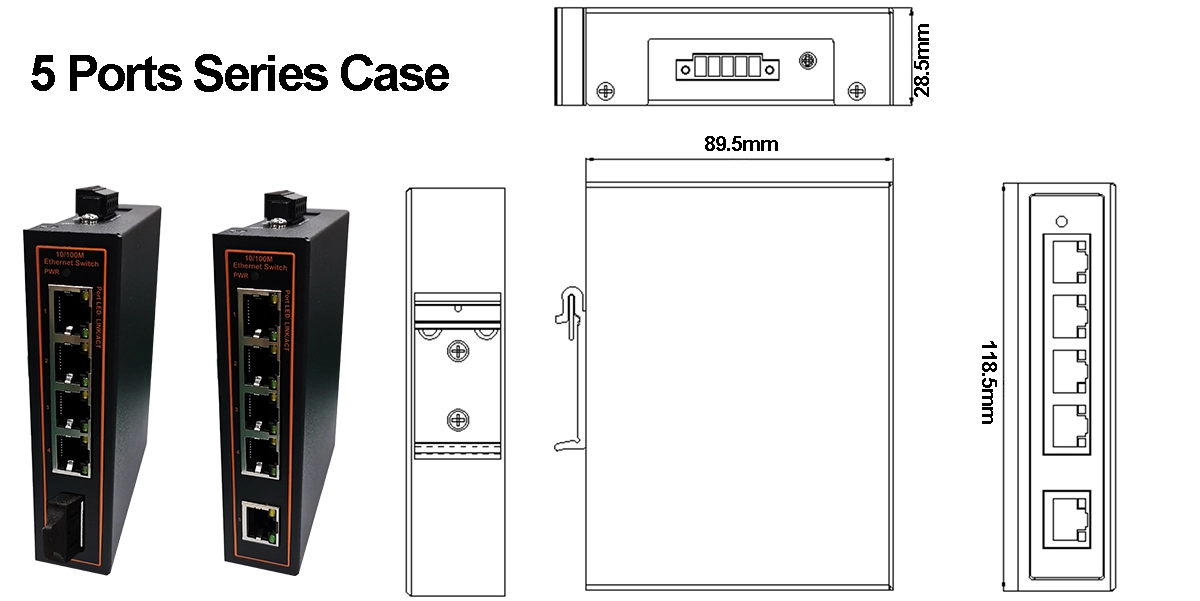

Small form factor with a compact, full-metal body and tight port arrangement, ideal for space-constrained DIN-rail installations.
Fanless & Energy-Efficient
Ultra-low power consumption (≤5W) with natural heat dissipation, eliminating fan noise and point-of-failure for silent, reliable operation.
Non-Blocking Wire-Speed Forwarding
Provides 1.0Gbps forwarding capacity, ensuring all ports can forward traffic at wire-speed for smooth data and HD video transmission.
Comprehensive Compliance
Strictly tested to meet rigorous industrial EMC standards including ESD, Surge, Vibration, and Shock (IEC61000-4 & IEC 60068-2 series).
| Item | Description |
|---|---|
| Transmission Method | Store-and-forward |
| MAC Address Table | 1K |
| Packet Buffer | 512K |
| Power Supply | Redundant DC 10~60V wide voltage input |
| Power Dissipation | ≤5W |
| Operating Temperature | -40℃ ~ +80℃ |
| Operating Humidity | 5% ~ 95% (Non-condensing) |
| Storage Temperature | -40℃ ~ +85℃ |
| Storage Humidity | 5% ~ 95% (Non-condensing) |
| Heat Dissipation | Fanless, natural cooling |

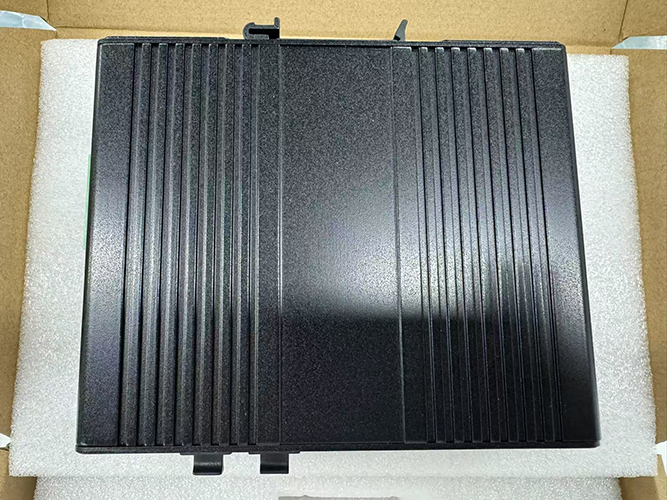

| Enclosure & Material | IP40, all-metal housing |
| Installation | DIN-rail mounting |
| Standards Compliance | FCC Part 15, EN55022 Class A, IEC61000-4-2/3/4/5/6 (ESD, RS, EFT, Surge, CS), IEC 60068-2-27/32/6 (Impact, Free fall, Vibration) |

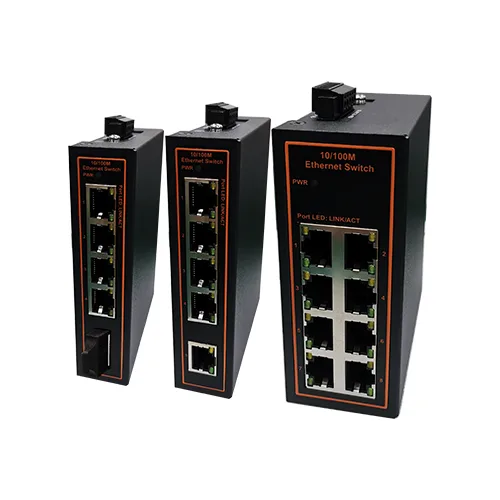

| Model | Description |
|---|---|
| S1000-5E-IK | Industrial DIN-rail unmanaged Fast Ethernet switch, 5x 10/100M ports, -40℃ to +80℃, dual redundant DC 12/24/48V input. |
| S1000-4E1F-IK | Industrial DIN-rail unmanaged Fast Ethernet switch, 4x 10/100M ports, 1x 100M 1X9 optical port (customized), -40℃ to +80℃, DC 12/24/48V input. |

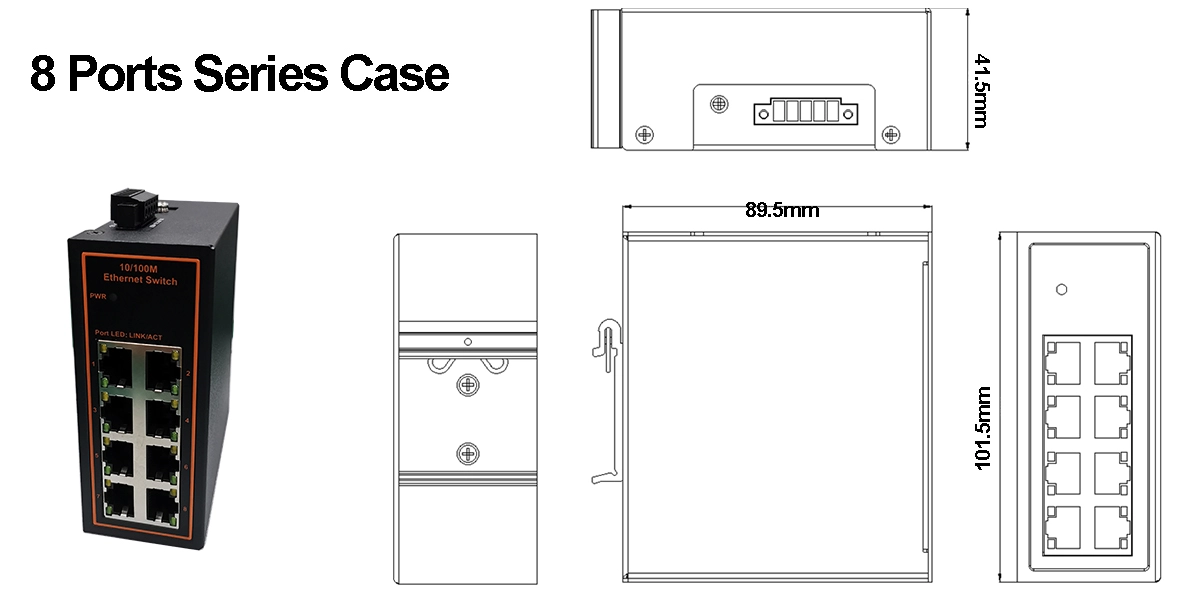

| S1000-8E-IK | Industrial DIN-rail unmanaged Fast Ethernet switch, 8x 10/100M ports, -40℃ to +80℃, dual redundant DC 12/24/48V input. |
