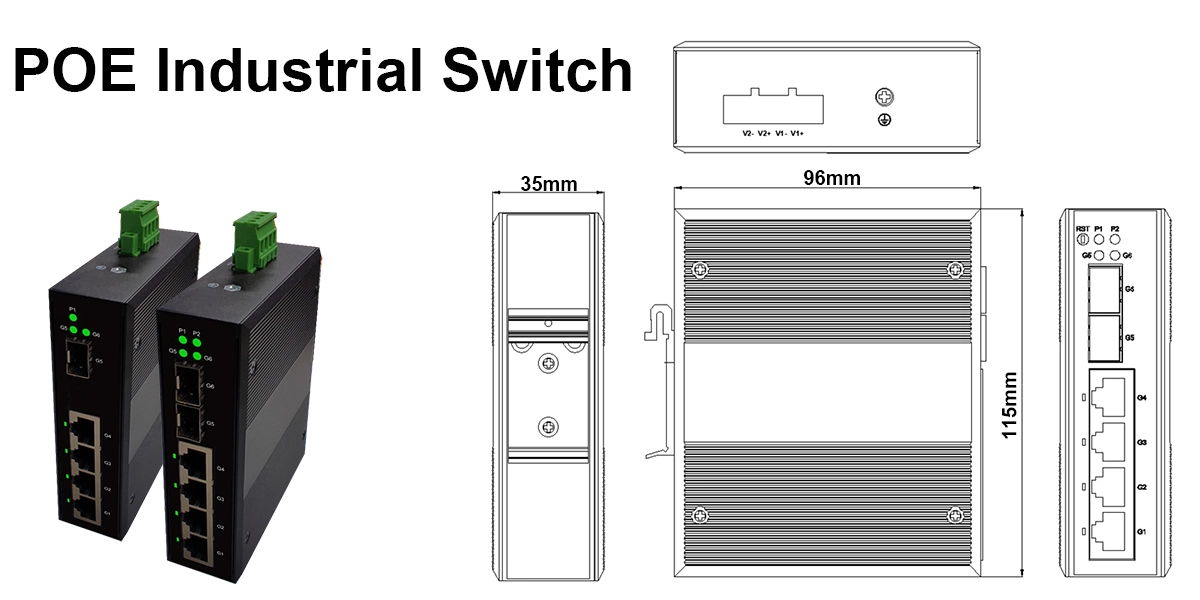

Features a compact metal enclosure. It measures 115mm (L) × 96mm (W) × 35mm (H) for space-efficient installation.
Wide temperature operation capability. Functions reliably from -40°C to +75°C in extreme environmental conditions.
High-Power PoE+ Support
Each of the 4 RJ45 ports delivers up to 30W, compliant with IEEE 802.3af/at standards for powering IP cameras, APs, and other devices.
Dual Fiber Uplink Options
Features 1 or 2 Gigabit SFP slots for flexible fiber optic backbone connections, supporting long-distance network extension.
Rugged Industrial Design
IP40 rated, all-metal sealed housing and fanless cooling for reliable operation in harsh environmental conditions.
Wide Temperature Operation
Operates reliably in extreme temperatures from -40°C to +75°C, suitable for both indoor and outdoor industrial applications.
Dual Redundant Power Input
Supports wide-range DC power input (44-57V for PoE) with redundancy to ensure continuous, uninterrupted operation.
Plug-and-Play Installation
Unmanaged operation allows for immediate deployment with zero configuration, saving time and maintenance costs.
Compact & Space-Saving
Compact DIN-rail design (115x96x35mm) optimizes space in control cabinets and crowded industrial panels.
Comprehensive Protection
Built-in protection against power surge, reverse connection, and ESD, meeting stringent industrial EMC standards.
| Attribute | Description |
|---|---|
| Port Configuration | 4×10/100/1000Base-T(X) RJ45 + 1/2×Gigabit SFP |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| PoE Budget | Up to 30W per port |
| MAC Address Table | 2K |
| Packet Buffer | 1M |
| Power Supply | Dual redundant DC input (PoE: 44-57V, Non-PoE: 10-60V) |
| Power Dissipation | ≤5W (non-PoE), ≤125W (PoE) |
| Operating Temperature | -40°C ~ +75°C |
| Ingress Protection | IP40, all-metal housing |
| Installation | DIN-rail mounting |
| Standards Compliance | FCC, IEC61000-4-2/3/4/5/6 (ESD, RS, EFT, Surge, CS) |
| Model | Description |
|---|---|

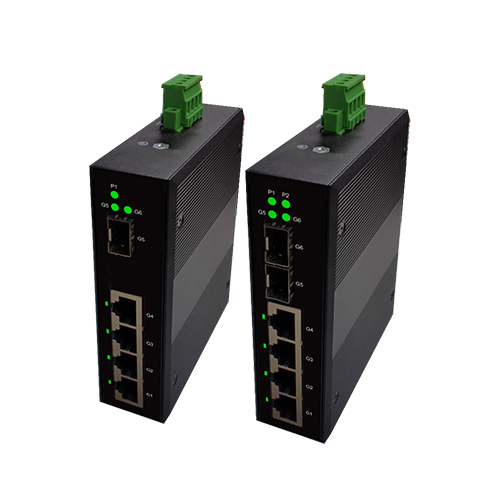

| S1000-4TP1S-IK | Industrial unmanaged PoE switch, 4×Gigabit RJ45 (PoE+), 1×Gigabit SFP, -40°C~75°C, dual DC44-57V input. |
| S1000-4TP2S-IK | Industrial unmanaged PoE switch, 4×Gigabit RJ45 (PoE+), 2×Gigabit SFP, -40°C~75°C, dual DC44-57V input. |
