XGSPON OLT

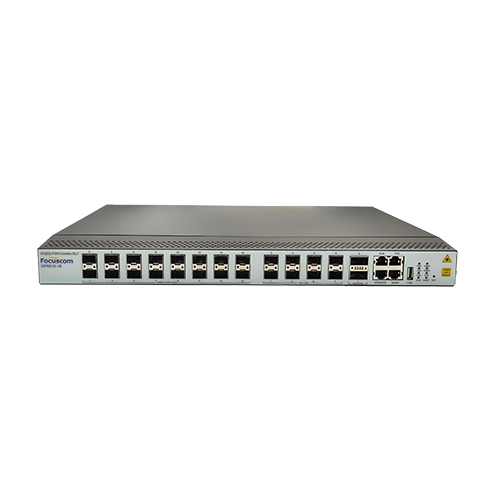

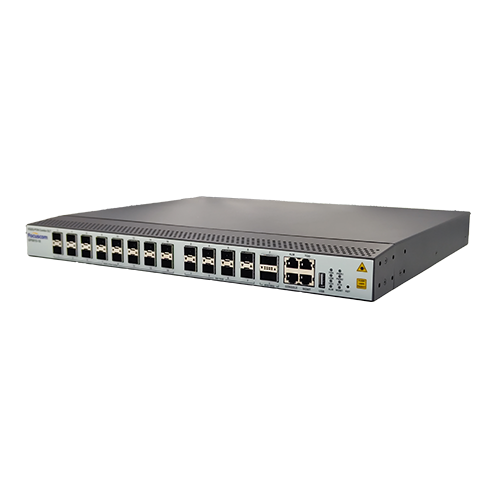

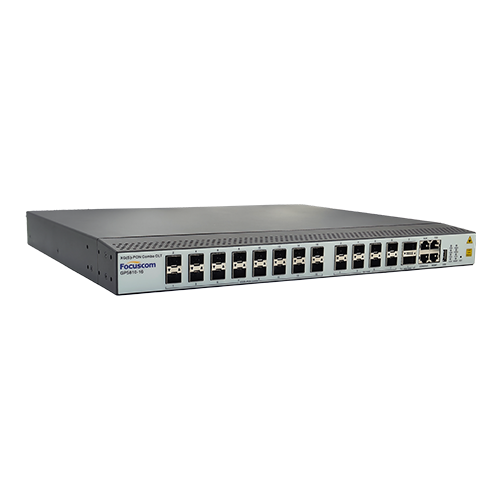

Name: XG(S)PON Combo OLT 1U 16 Port OLT GP5810-16
Brand: Focuscom
SKU: 01059
Availability: InStock
Rating: 5 (1 reviews)

Home > PON OLT > XGSPON OLT

Description Specification Purchase Info

Description

Carrier-Class Uplink Flexibility and High-Availability

Built for robust, carrier-grade networks, the GP5810-16 offers superior uplink flexibility with 8*10G SFP+ ports and 2*100G QSFP28 ports. This configuration enables powerful aggregation capabilities, ensures redundancy, and provides ample bandwidth headroom for future growth and 5G fronthaul/backhaul applications. It is designed to eliminate uplink bottlenecks in the most demanding environments.

Future-Proof COMBO Technology for Seamless GPON to XGSPON Migration

Each port leverages advanced XGSPON COMBO technology, supporting both GPON (2.5G) and XGSPON (10G) standards concurrently. This allows for a seamless, fiber-level migration. You can continue serving existing GPON customers while onboarding new subscribers with ultra-fast 10G services, all without the need for costly fiber re-engineering or hardware swaps, protecting your infrastructure investment for the long term.

Unmatches Port Density for Mass 10G FTTH Deployment

The GP5810-16 is engineered for high-scale service providers, featuring 16 XGSPON COMBO ports on a single platform. This high-density design drastically reduces the cost per subscriber and optimizes rack space, making it the ultimate solution for mass FTTH (Fiber-to-the-Home) rollout in MDUs (Multi-Dwelling Units), urban neighborhoods, and large enterprise campuses. It efficiently prepares your network for mass 10G symmetric services.

Comprehensive Management and Precision Timing

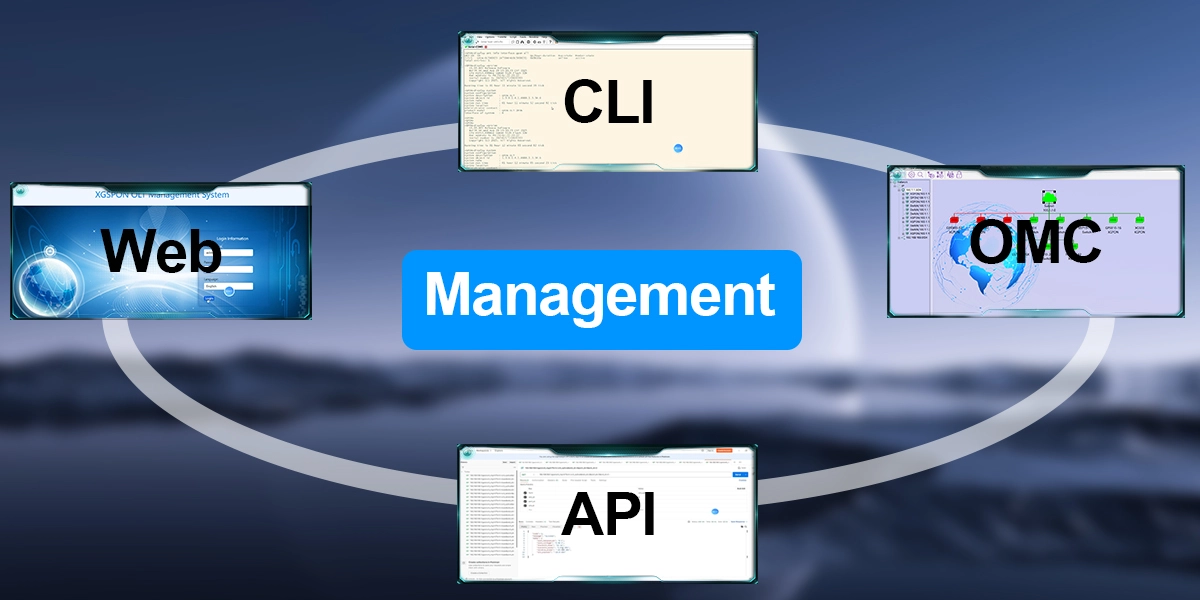

The OLT ensures full operational control and synchronization with a complete suite of management ports, including ALM (Alarm), TOD (Time of Day), MGMT (Management), and a CONSOLE port. This facilitates advanced OAM (Operations, Administration, and Maintenance), remote diagnostics, and precise timing synchronization, which is critical for meeting strict SLA (Service Level Agreement) requirements and supporting latency-sensitive services.

Specification

Key Feature

Ø Maximum split ratio of 1:256, supporting up to 4,096 ONUs (2,048 XGS-PON/XG-PON ONUs + 2,048 GPON ONUs)

Ø Compliant with standards: ITU-T G.984/G.987/G.988/G.9807, ensuring excellent interoperability

Ø Unified multi-service platform for GPON/XG-PON/XGS-PON, facilitating future network upgrades and evolution

Ø Dual power redundancy and PON trunk fiber protection for high service continuity and stability

Ø Modular design with hot-swappable power supplies and fans

Ø Rich L2/L3 switching features and flexible management options

Ø Advanced QoS to guarantee service quality

Ø Standardized OMCI for remote ONU deployment, management, and batch firmware upgrades

Ø Flexible compatibility with major ONU brands

Hardware Specification

Attributes	Description
Interface	16XG(S)-PON/GPON Combo port, 810G Base-X SFP+ port 2*40G/100G QSFP28 port
Exchange Capacity	880Gbps
Forwarding Rate	654.72Mpps
Memory & Flash	Memory: 2GB；Flash: 8GB
Management Port	Console, MGMT
PON	Comply with ITU-T G.987/G.988 Standard; Wavelength: GPON: 1490nm downstream & 1310nm upstream； XSGPON: 1577nm downstream & 1270nm upstream；
	GPON: downstream - 2.5Gbps, upstream - 1.25Gbps； XGPON: downstream - 10Gbps, upstream - 2.5Gbps. XGSPON: downstream - 10Gbps, upstream - 10Gbps；
	XGS-PON supports: Maximum logical reach: 100km; Maximum physical reach: 40km; Maximum differential distance: 40km GPON supports: Maximum logical reach: 60km; Maximum physical reach: 20km; Maximum differential distance: 20km
	Combo PON Interface, support 1:256 Split Ratio (Max) GPON 1:128 & XGPON/XGSPON 1:128

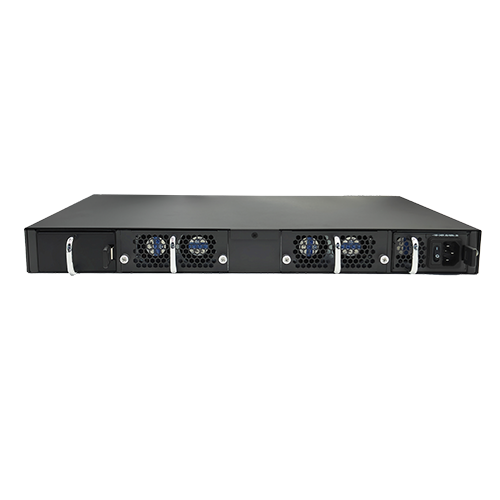

Fan	Supports 2 hot-swappable, speed-adjustable fans
Power	Pluggable Module Power， For Option AC+AC/DC+DC/AC+DC for option AC： 100～240V 47/63Hz； DC： -36V～-75V
Power Consumption	≤150W
Weight	8kg
Dimension(WHD)	440mm44mm320mm (not including mounting ears)
Environment Temperature	Operating Temperature: -10°C~55°C Storage Temperature: -40°C~70°C
Environment Humidity	Relative Humidity: 5%~95%, non-condensing

Purchase Info

Purchase Info

Model	Description
GP5810-16	16XG(S)-PON/GPON port, 810G Base-X SFP+ port，2*40G/100G QSFP28 port

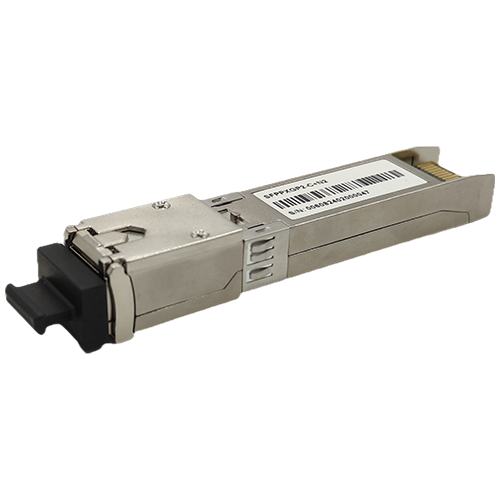

	SFPPXGP2-C+N2 XGS-PON COMBO SFPP module -GPON Class C+-XGS-PON Class N2
	AC/DC Dual Power for Option
	EU & USA Power Plug for Option
