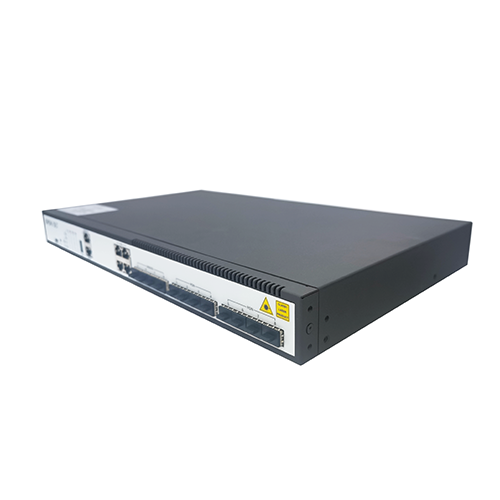

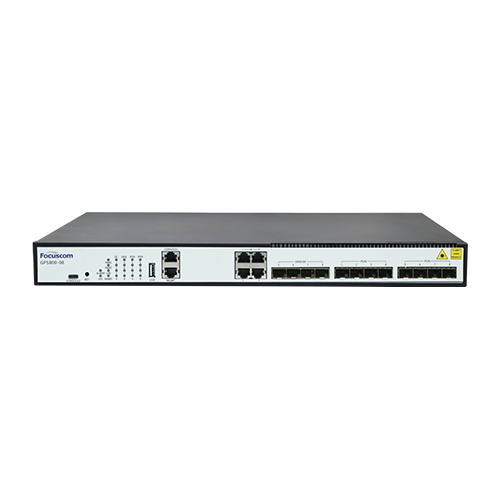

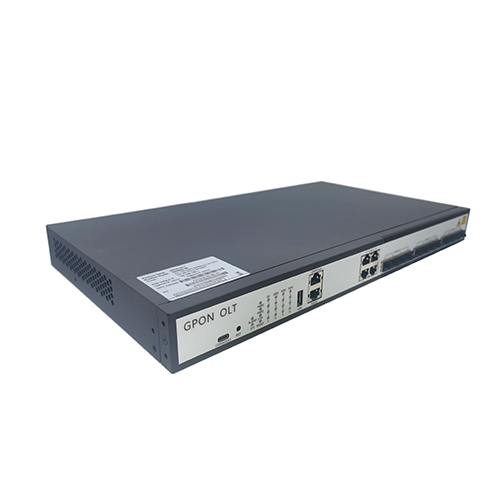

GP5800-08 GPON OLT
GPON 8 Port OLT for high-density FTTx solutions
High Density Access GPON OLT
Fiber OLT with flexible 10G and GE uplink ports
Designed For FTTx Solution
Supports triple-play services: Internet, VoIP, and IPTV

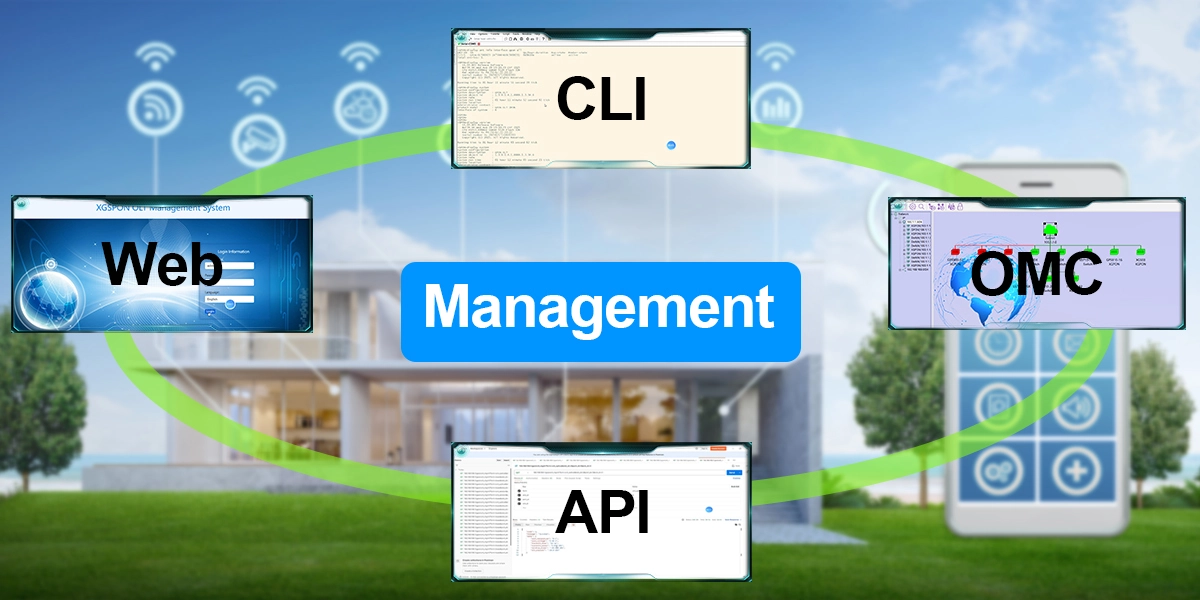

Manageable via Web, CLI, API and OMC for easy operation
Ø Maximum split ratio of 1:128, connecting up to 1024 ONTs
Ø Rich Layer 2/3 switching features, flexible management methods
Ø Comply with ITU-TG.984/G.988 standard
Ø Support FlexLink, STP, RSTP, MSTP, ERPS, LACP, ACL, QoS
Ø Support 64K MAC address
Ø Support RIP、OSPF、BGP、ISIS and IPV6
Ø Support ONU authentication, FEC, AES, DBA, Rogue ONU detection
Ø Support CLI, Telnet, WEB, SNMP V1/V2/V3, SSH2.0, OMCI protocol
Ø Support Power redundancy backup
Ø Support batch software upgrades on ONUs
Ø Flexibly compatible with any brand of ONTs
|
Attributes |
Description |
|
Interface |

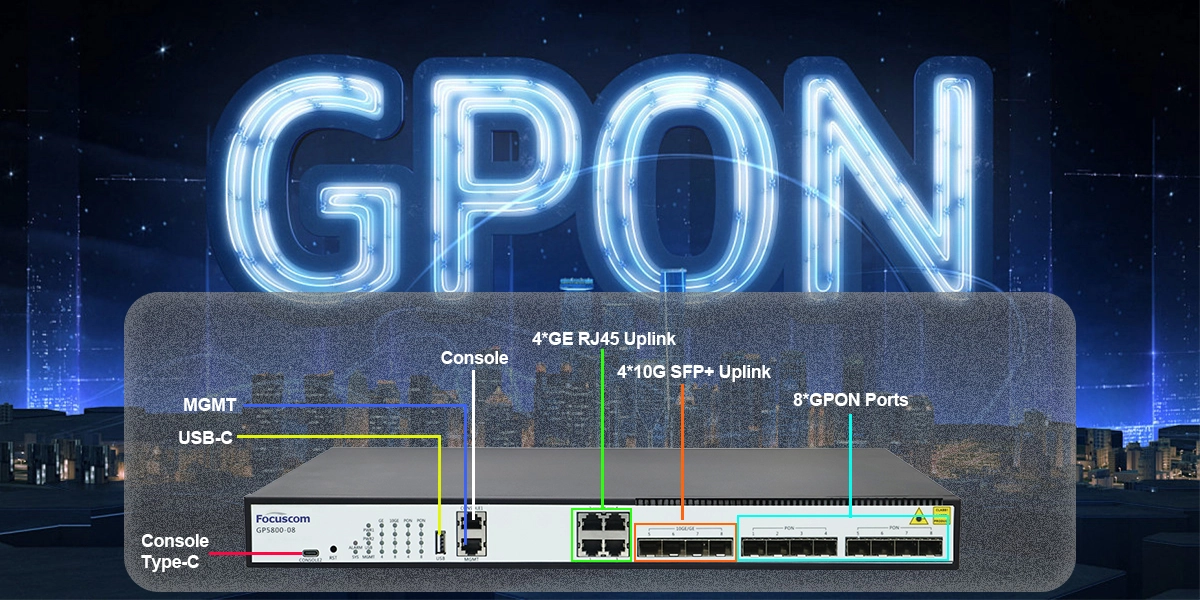

8*GPON Port, 4*10/100/1000M Base-T; 4*1000M Base-X SFP/4*10GE SFP+ |
|
Exchange Capacity |
118Gbps |
|
Forwarding Rate |
87.792Mpps |
|
Memory & Flash |
DRAM: 2GB; Flash: 8GB |
|
Management Port |
Console, MGMT, Type C |
|
PON |
Comply with ITU-TG.984/G.988 Standard 60KM transmission distance; 1:128 Max splitting ratio; Standard OMCI management function Open to any brand of ONTs; ONU batch software upgrade |
|
Fan |

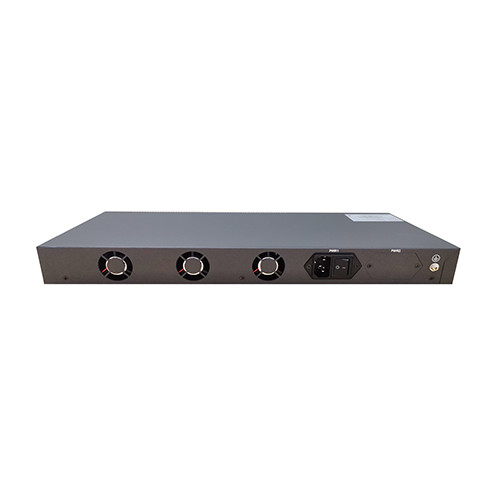

Fixed fans (three fans) |
|
Power |
AC: 100~240V 47/63Hz; DC: -36V~-75V |
|
Power Consumption |
≤55W |
|
Weight |
≤5kg |
|
Dimensions (W *H *D) |
440mm*44mm*260mm (not including mounting ears) |
|
Environment Temperature |
Working Temperature: -10°C~55°C Storage Temperature: -40°C~70°C |
|
Environment Humidity |
Relative Humidity: 5%~95% (non-condensing) |
|
Model |
Description |
|
GP5800-08 |
8*GPON port+4GE RJ45+4*10GE/GE SFP uplink port |
|

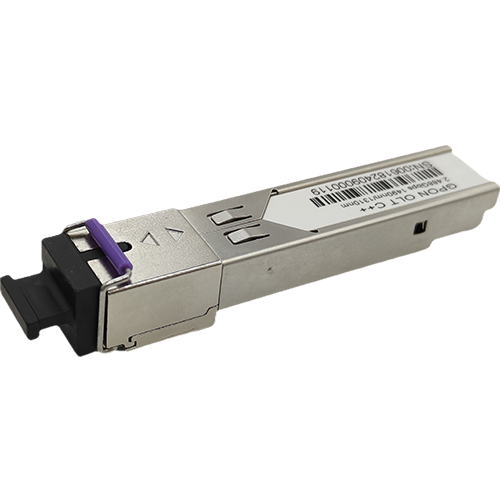

GPON PON Transceiver (GPON SFP-Transmit 1490nm/Receive 1310nm, 7dBm, SC interface-Class C++) |
|
|
AC/DC optional dual power supply |
|
|
EU & US power plug optional |
