Ø Maximum split ratio of 1:128 or 1:256
Ø Fully complies with ITU-T G.984/G.987/G.988 /G.9807 standards
Ø Support 128K MAC address
Ø Modular design of the whole machine, boards, power supplies and fans all support hot swap
Ø Abundant Layer 2 and Layer 3 switching features and flexible management
Ø Powerful QoS function guarantees service quality
Ø Safe DDOS and virus attack protection function
Ø Unified network management platform
Ø Standard OMCI remote deployment and management of user terminal
Ø Support RIP、OSPF、IPV6, STP, RSTP, MSTP, ERPS, LACP, ACL, QoS

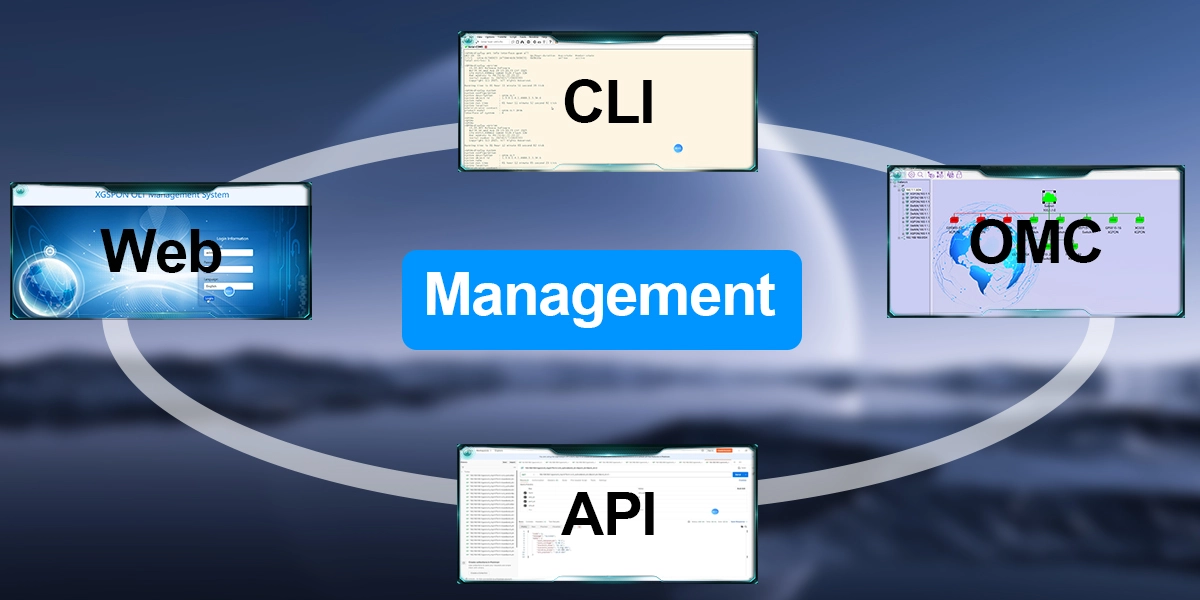

Ø Support CLI, Telnet, WEB, SNMP v1/v2/v3, SSH2.0, OMCI protocol
Ø Support batch software upgrades on ONUs
Ø Flexibly compatible with any brand of ONTs
Ø Dual main controllers, dual power supply redundancy, PON backbone optical fiber protection, to ensure business continuity and stability

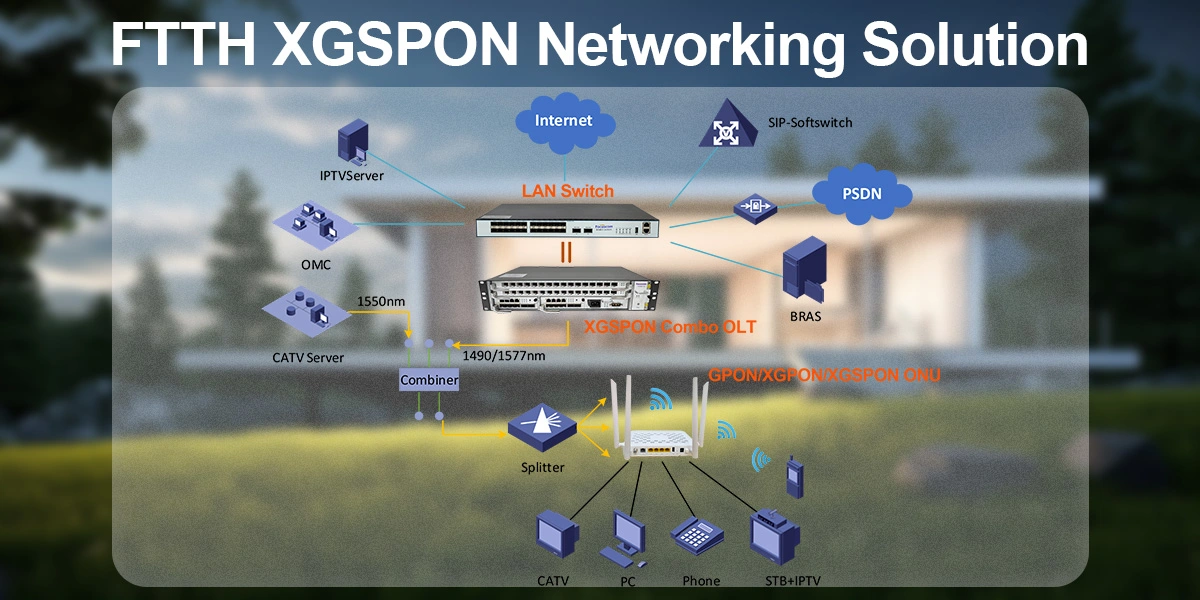

Ø Support GPON/XG-PON/XGS-PON multi-service unified platform facilitates subsequent network upgrades and technology evolution
|
Attributes |
Description |
|
Interface |

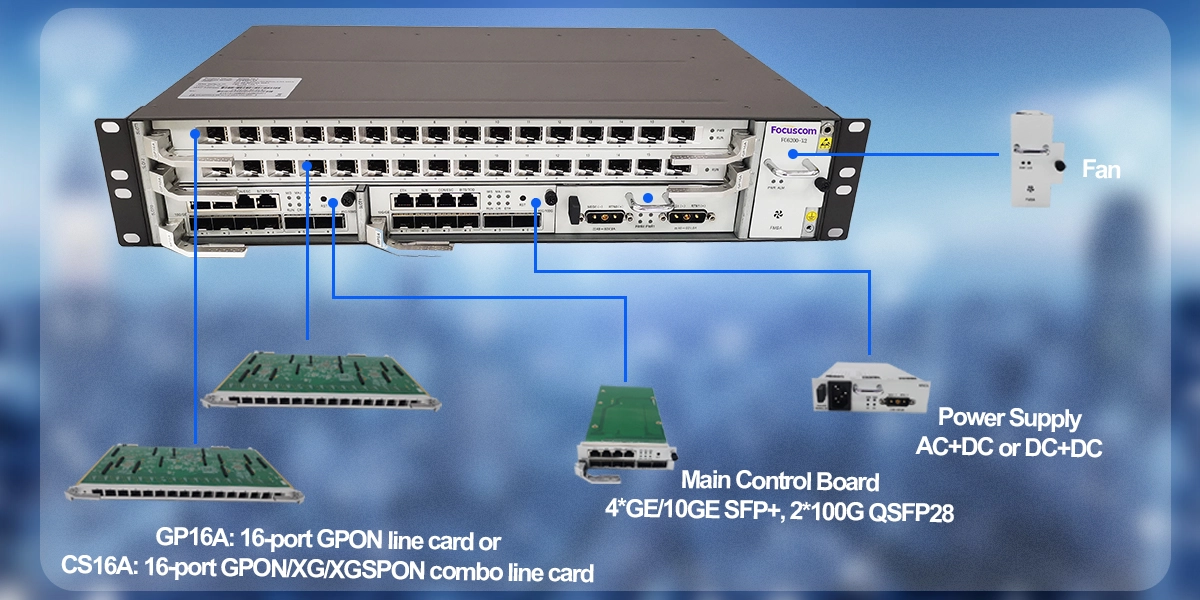

MPSA: main control board, 4*GE/10GE SFP+, 2*100G QSFP28 GP16A: 16-port GPON line card CS16A: 16-port GPON/XG/XGSPON combo line card |
|
Exchange Capacity |
1280Gbps |
|
Forwarding Rate |
952.32Mpps |
|
Memory & Flash |
4G Bytes (main control board) + 4G Bytes (PON board) |
|
Flash |
64M + 8G Bytes (main control board) + 64M Bytes (PON board) |
|
Management Port |
Console port, debugging network port |
|
PON |
Comply with ITU-TG.984/T G.987/G.988 standard Wavelength: GPON: 1310nm (upstream) 1490 nm (downstream), XGSPON: 1270nm (upstream) 1577nm (downstream); |
|
Line Speed: GPON downlink 2.5Gbps, uplink 1.25 Gbps XGPON downlink 10Gbps, uplink 2.5Gbps; XGSPON downlink 10Gbps, uplink 10Gbps; |
|
|
GPON supports a maximum distance of 60KM logical distance 20KM physical distance, and 20KM differential distance; XGPON supports a maximum distance of 100KM logical distance 40KM physical distance, and 40KM differential distance; |
|
|
Flexibly compatible with any brand of ONTs Perform batch software upgrades on ONUs |
|
|
PON port 1:256 Maximum split ratio in total: GPON 1:128, XGPON/XGSPON 1:128 Standard OMCI management function; |
|
|
Fan |
Modular fans supply * 2 |
|
Power Supply |
AC: 100～240V 47/63Hz; DC: 48V; Modular power supply optional AC+DC or DC+DC |
|
Power Consumption |
280W |
|
Weight |
12kg |
|
Dimensions (W *H *D) |
482.6mm*270mm*88.9mm (not including mounting ears) |
|
Environment Temperature |
Working Temperature: -10°C~50°C Storage Temperature: -40°C~70°C |
|
Environment Humidity |
Relative Humidity: 5%~95% (non-condensing) |
|
Model Number |
Description |
|

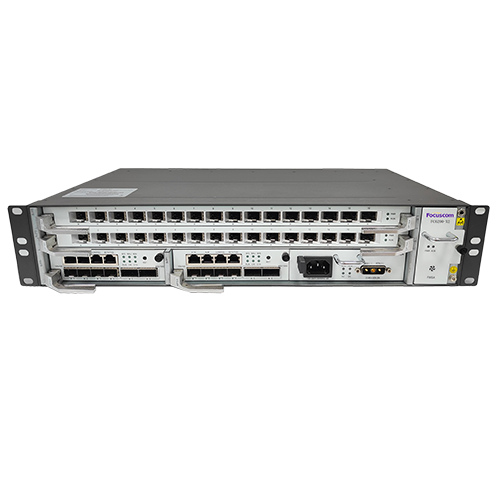

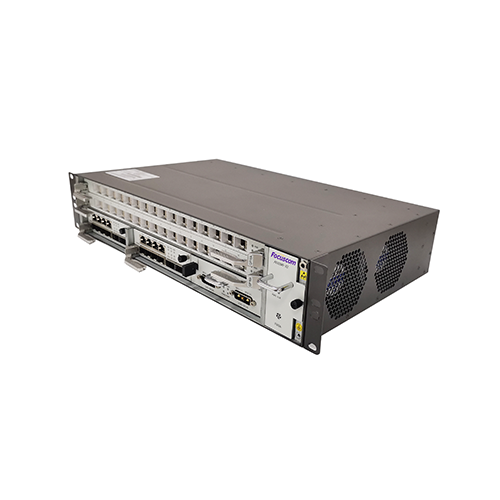

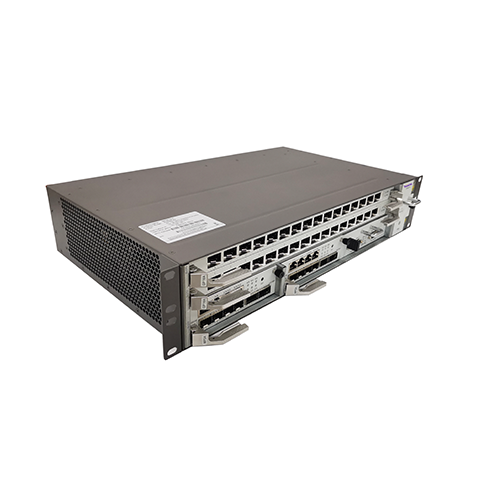

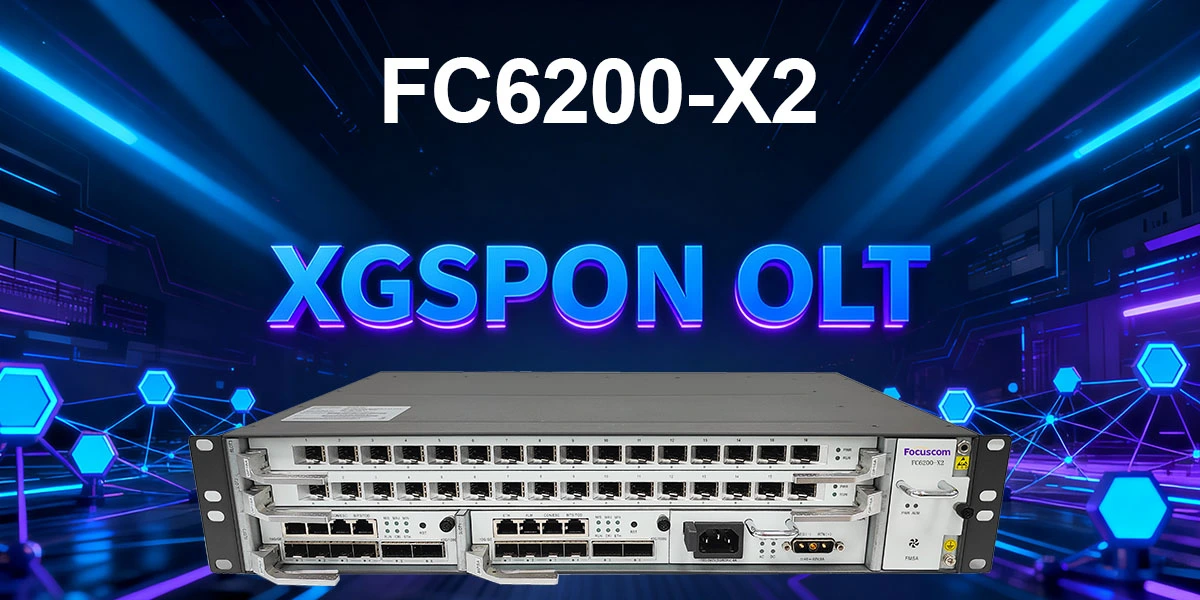

FC6200-X2
|
MPSA: main control board, 4*GE/10GE SFP+, 2*100G QSFP28 GP16A: 16-port GPON line card CS16A: 16-port GPON/XG/XGSPON combo line card |
|

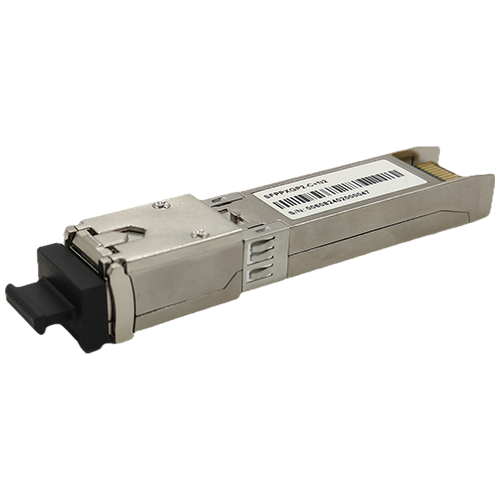

XGS-PON COMBO SFPP transceiver-GPON Class C+-XGS-PON Class N2 |
|
|
AC+DC or DC+DC dual power supply optional |
|
|
EU & US power plug optional |
